Adam A77X (b – desni) Aktivni studijski monitor
SKU: adam-a77x-a-aktivni-studijski-monitor-1Preuzimanje
Direktna kupovina iz radnje
Dostava
• Na stanju
- Kategorija:
- Brend:Adam Audio
- Dostupnost:Povremeno na Lageru
IK Multimedia iLoud Micro Aktivni monitori Limited White Edition Special
Opis & specifikacije

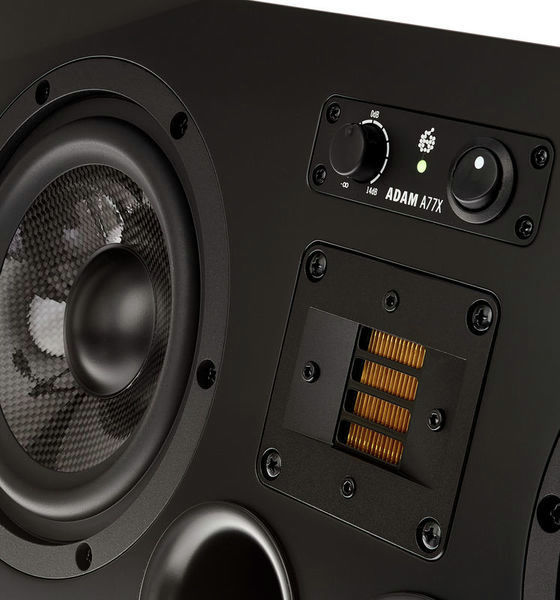

The A77X is a horizontally designed monitor that combines all of the technical innovations in the AX-Series. Due to its powerful, compression-free sound reproduction and excellent radiation characteristics, it is suitable both for nearfield and midfield monitoring.
The special feature of the A77X is its 2 1⁄2-way system. Both 7” woofers start to work together at 38 Hz and at 400 Hz one woofer fades out and only the second woofer continues to operate in the midrange up to 3 kHz. This prevents interferences and possible phase cancellation in the critical midrange. Even though frequency transitions and potential distortions lie outside these areas, the human ear is particularly sensitive to midrange frequencies.
Especially noteworthy in the A77X is the extremely wide stereo foundation and brilliant stereo imaging. Treble and mids are reproduced with three-dimensional realism and the lows are, as expected from a double woofer design, massive without compromising on precision.
Number 2 Basket Ø 7″ (175 mm) Voice Coil Ø 1.5″ (38 mm) Cone Material Carbon/Rohacell/Glass Fiber TWEETER
Number 1 Type X-ART Diaphragm Area 4 inch² (2420 mm²) Equiv. Diaphragm Ø 2″ (56 mm) Velocity Transform Ratio 4:1 Diaphragm Weight 0.17 g BUILT-IN AMPLIFIERS
Woofer 1 Type PWM Amp. Power RMS / Music 100 W / 150 W Subwoofer 1 Type PWM Amp. Power RMS / Music 100 W / 150 W Tweeter 1 Type A/B Amp. power RMS / music 50 W / 75 W CONTROL PANEL

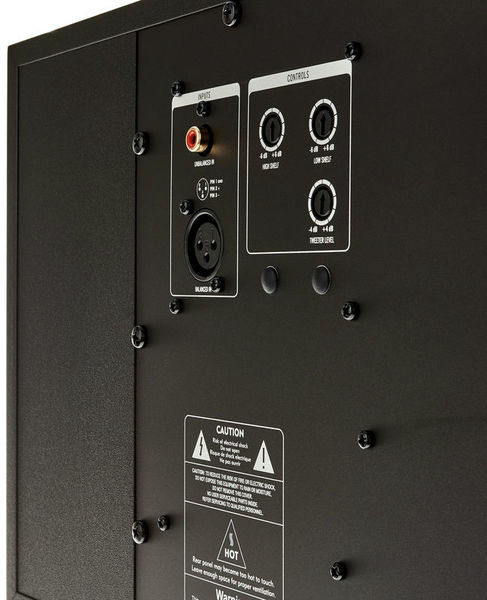

Input Sensitivity -∞ to +14 dB High Shelf EQ > 5 kHz ±6 dB Low Shelf EQ < 300 Hz ±6 dB Tweeter Gain ±4 dB INPUT CONNECTORS
Analog XLR / RCA GENERAL DATA
Frequency Response 38 Hz – 50 kHz THD 90 dB / 1 m > 100 Hz ≤0.5 % Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m ≥114 dB Max. SPL per pair at 1 m ≥122 dB Crossover Frequencies 400 / 3000 Hz Input Impedance 30 kOhm Panel Front Weight 28.2 lb (12,8 kg) Magnetically Shielded No Height x Width x Depth 9.5″ (235 mm) x 21″ (530 mm) x 11″ (280 mm) Warranty 5 years (2 years warranty plus 3 years optional with product registration) Delivery Contents Power cord, manual
