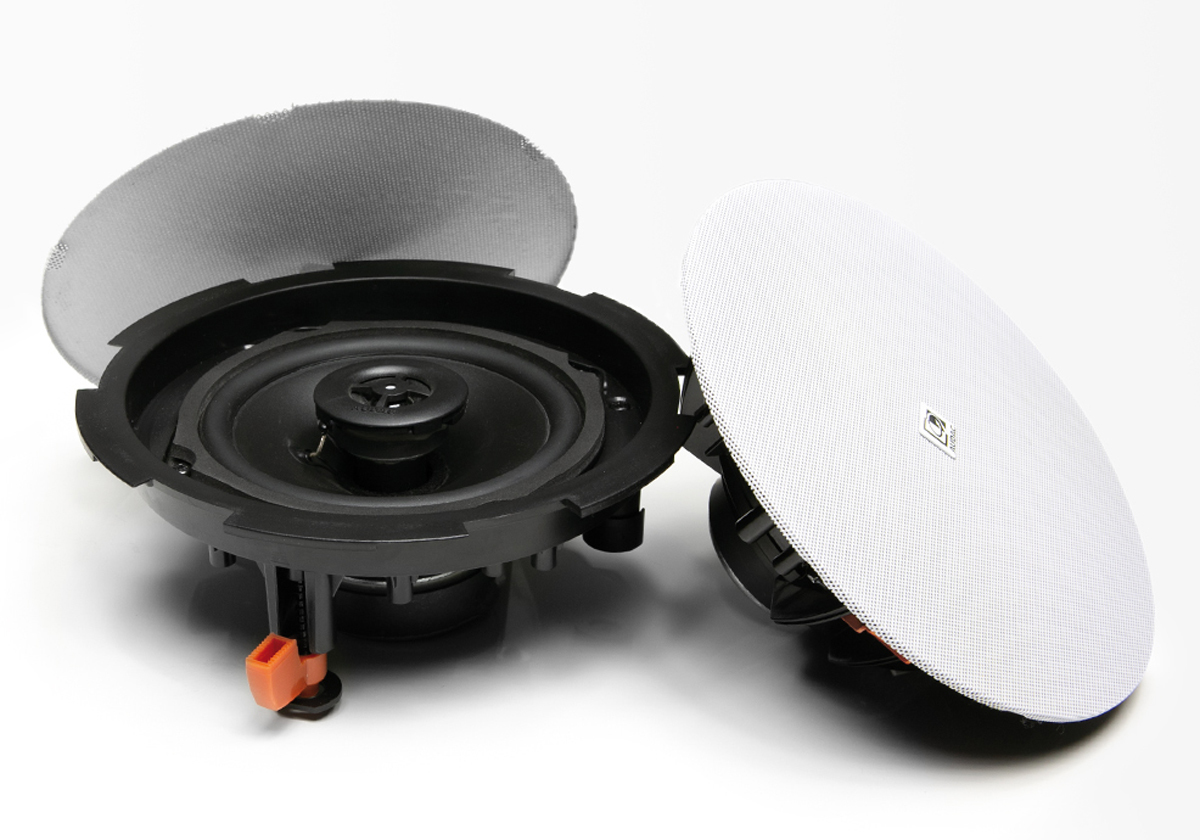

Audac CIRA724 W ugradni zvučnik

Audac CIRA724 W dvosistemski (koaksijalni) ugradni plafonski zvučnik koji može da bude Hi-FI a može i 100V zvučnik

Dizajniran da bude “best buy”u odnosu cena – kvalitet. Dvosistemski zvučnik sa driverom od 6,5″ i Mylar tweeter 1”. 30W realne muzičke snage i max 60W.
100V linijski transformator koji ima opcije na 24, 12 ili 6W na 8 ili 16ohm.

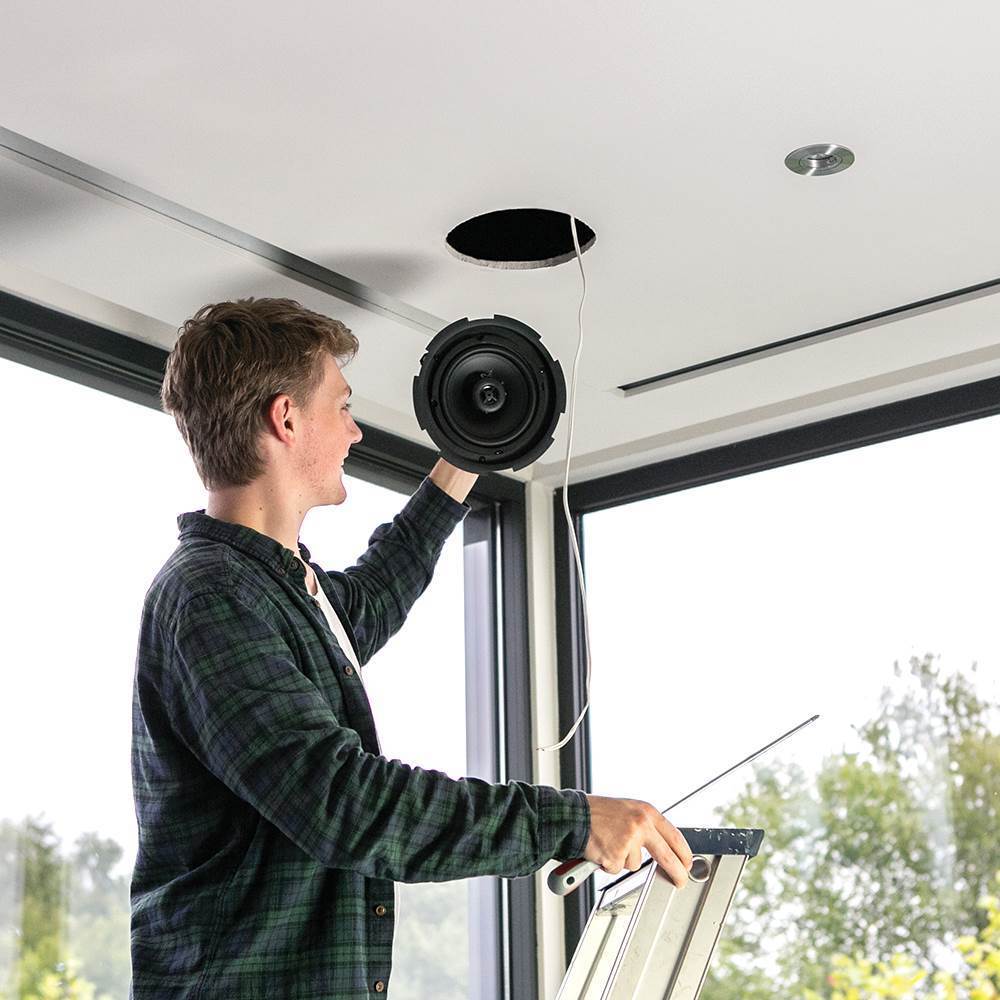

Preporuka za ugradnju:
Višlji plafoni i pregradni zidovi
Čistiji zvuk – glasniji zvučnik 103 dB
220 mm  u prečniku daje bolji bas ton.

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

The CIRA7 features a 6.5” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm or 16 Ohm bypass connection.

Specifikacija :

SYSTEM SPECIFICATIONS
Max. Power		60 W
RMS Power		30 W
Sensitivity (1W/1m)		88 dB
Speaker type		2-way coaxial
Impedance		8 Ω (CIRA724)
		16 Ω (CIRA730D)
Connectors		Multi-tap Fast-con™ connections
Sound Pressure (Max. W/1m)	@ 100 V	103 dB
Frequency	Response (± 3 dB)	55 Hz – 20 kHz
	Range (-10 dB)	45 Hz – 20 kHz
Dispersion	Conical	150°
Drivers	HF	1”
	LF	6.5¼”
Line Transformer Tappings	1	24 W – 417 Ω (CIRA724)
	2	12 W – 833 Ω (CIRA724)
	3	6 W – 1667 Ω (CIRA724)

PRODUCT FEATURES
Rupa za zvučnik	200 mm (Ø)
Težina	1.45 kg (CIRA724)
	1.35 kg (CIRA730D)
Temperatura	-20 °C ~ 60 °C
Construction	ABS
Front finish	TwistFix™Borderless finely perforated steel grill
Maksimalna dubina	78 mm (CIRA724)
	75 mm (CIRA730D)
Mounting	QuickFit™ mounting system
	Fixture point for safety cable
Colours	White (RAL9003) (CIRA724/W& CIRA730D/W)
Spoljšnje mere	224 mm (Ø)
