Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity

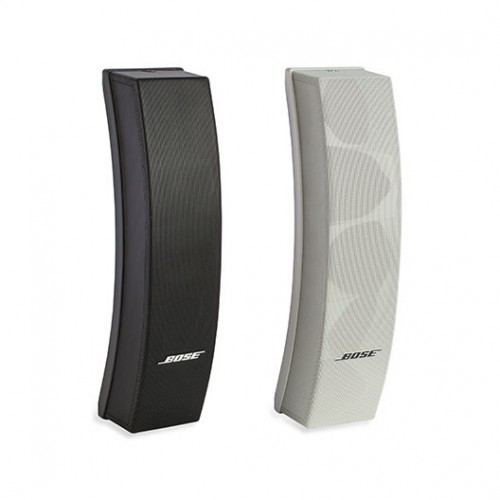

Bose Panaray 502A 5-sistemski 4,5″ pasivni zvučnik
SKU: bose-panaray-502a-5-sistemski-45-pasivni-zvucnikKontaktirajte za cenuPreuzimanje
Direktna kupovina iz radnje
Dostava
• Na stanju
- Kategorija:
- Brend:Bose
- Dostupnost:Na Lageru
Opis & specifikacije
Bose Panaray 502A je 5-sistemski 4,5″ pasivni zvučnik koji poseduje full-range driver array tako da eliminiše potrebu za visokotoncem i krosoverima i obezbeđuje neprekidnu pouzdanost i vokalnu jasnoću. Articulated Array dizajn sa širokim pokrivanjem od 120° x 70° može efikasno pokriti manje lokacije sa samo jednim zvučnikom, a može biti uparen sa Bose Pro subvuferima za pun opseg kada su u pitanju zahtevniji projekti.
5 x Bose® 4.5-inch full-range drivers for legendary reliability
120° x 70° Articulated Array® design covers a very wide area, which can reduce the number of loudspeakers required
103 Hz – 15 kHz Frequency Range optimized for speech reinforcement
117 dB Peak SPL for sound-reinforcement and foreground music
Slim, elegant design for demanding aesthetic requirements
Indoor installations only
Optional 70V/100V transformer
Requires Active Equalization
Applications
- Auditoriums
- Houses of worship
- Restaurants and bars
- Hospitality venues
Technical Summary
Frequency Range (-10 dB)
103 Hz – 15 kHzNominal Coverage Pattern (H x V)
120° H x 70° VLong-Term Power Handling
Bose extended-lifecycle test⁴: 150 W
AES transducer test⁵: 200 WPower Handling, Peak
Bose extended-lifecycle test⁴: 600 W
AES transducer test⁵: 800 WSensitivity (SPL / 1 W @ 1 m)
88 dB SPLCalculated Maximum SPL @ 1 m
Bose extended-lifecycle test⁴: 110 dB SPL
AES transducer test⁵: 111 dBCalculated Maximum SPL @ 1 m, peak
Bose extended-lifecycle test⁴: 116 dB
AES transducer test⁵: 117 dBNominal Impedance
8 Ω
