AVR-X1700H DAB Receiver

Number of Power Amps

7

Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive)

80 W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)

120 W

Power Output (6 ohm, 1 kHz, 1% 1ch Drive)

145 W

Speaker impedance

4-16Ω/ohms

Input sensitivity

200 mV

Frequency response

10 Hz – 100 kHz — +1, –3 dB (Direct mode)

S/N Ratio

98dB (IHF-A weighted, Direct mode)

FM section (Tuning frequency range)

87.5 – 107.9 MHz

AM section (Tuning frequency range)

520 – 1710 kHz

Power Supply

AC 230 V, 50 Hz

Power Consumption in W

440

Power Consumption No-Sound (ECO On / Off) in W

29 W / 39 W

Weight in kg

8.6

3.5mm audio line-in connection

Yes

System Remote Control

RC-1244

Standby Consumption in W

0.1

CEC Standby Consumption in W

0.5

Carton Maximum Dimensions (W x D x H) in mm

523 x 435 x 232

Carton Weight (inc. product) in kg

10.6

Colour

Black

Maximum Dimensions (W x D x H) in mm

434 x 339 x 151 mm

Maximum Dimensions – Antenna:Horizontal:(W x D x H) in mm

434 x 339 x 215 mm

HDMI In / Out

6 / 1

Composite In / Out

2 / 1

Phono (MM) In

Yes

Analogue In/Out

2 / No

Digital Optical In/Out

2 / No

Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB

No / No / No / No / Yes

Pre-out / Main-in

0.2 ch / No

Multi-Room Speaker Terminal

assignable

Headphone Output

Yes

Ethernet

Yes

AM/FM Tuner

Yes

USB Audio / Made for iPod / Made for iPhone

Yes / AirPlay / AirPlay

Bi-amp Drive

assignable

Speaker A / B

assignable

Number of Speaker Terminals

7

Subwoofer Out

2

Multichannel Preout

Yes (0.2)

Digital Outputs: Coaxial / Optical

2 / 0

Digital Coaxial In / Out

2 / 0

DAB / DAB+ tuner

Yes

FM Tuner with RDS

Yes

Max Number of Processing (Preamp) Channels

7.1

DTS HD Master / DTS:X

Yes / Yes

DTS Neo:X / DTS Neural:X

No / Yes

DTS Virtual:X

Yes

Dolby TrueHD / Dolby Atmos

Yes / Yes

Dolby ProLogic Ilz / Dolby Surround

No / Yes

Dolby Height Virtualisation

Yes

Multichannel Stereo

Yes

Dialogue Enhancer

Yes

Discrete Power Amplifiers

7

Audyssey Dynamic EQ / Dynamic Volume

Yes / Yes

Speaker Setup Presets

2

Audyssey

MultEQ XT

Audyssey APP Support

Yes

Compressed Audio Restorer

Yes

Gapless playback

Yes (FLAC, WAV, ALAC, DSD)

Internet Radio

TuneIn

Compatible with Remote APP for Smart Phones

Android / iOS

Compatible with Remote APP for Tablets

Android / iOS / Amazon Kindle

HEOS Multiroom and Streaming

Yes

Lossy Formats: MP3 / WMA / AAC

Yes / Yes / Yes

Lossless Formats: FLAC / ALAC / WAV

Yes / Yes / Yes

DSD Audio Streaming

up to DSD5.6

FLAC HD 192/24

Yes

WAV 192/24

Yes

ALAC 192/24

Yes

AirPlay 2

Yes

Roon Tested

Yes

Spotify Connect* / Tidal* / Deezer* / others *

Yes / Yes / Yes / Yes

Amazon Prime Music* / Pandora*

Yes / Yes

Ethernet Ports

Yes

Wi-Fi

Yes

Bluetooth

Yes

Bluetooth Headphone transmission

Yes

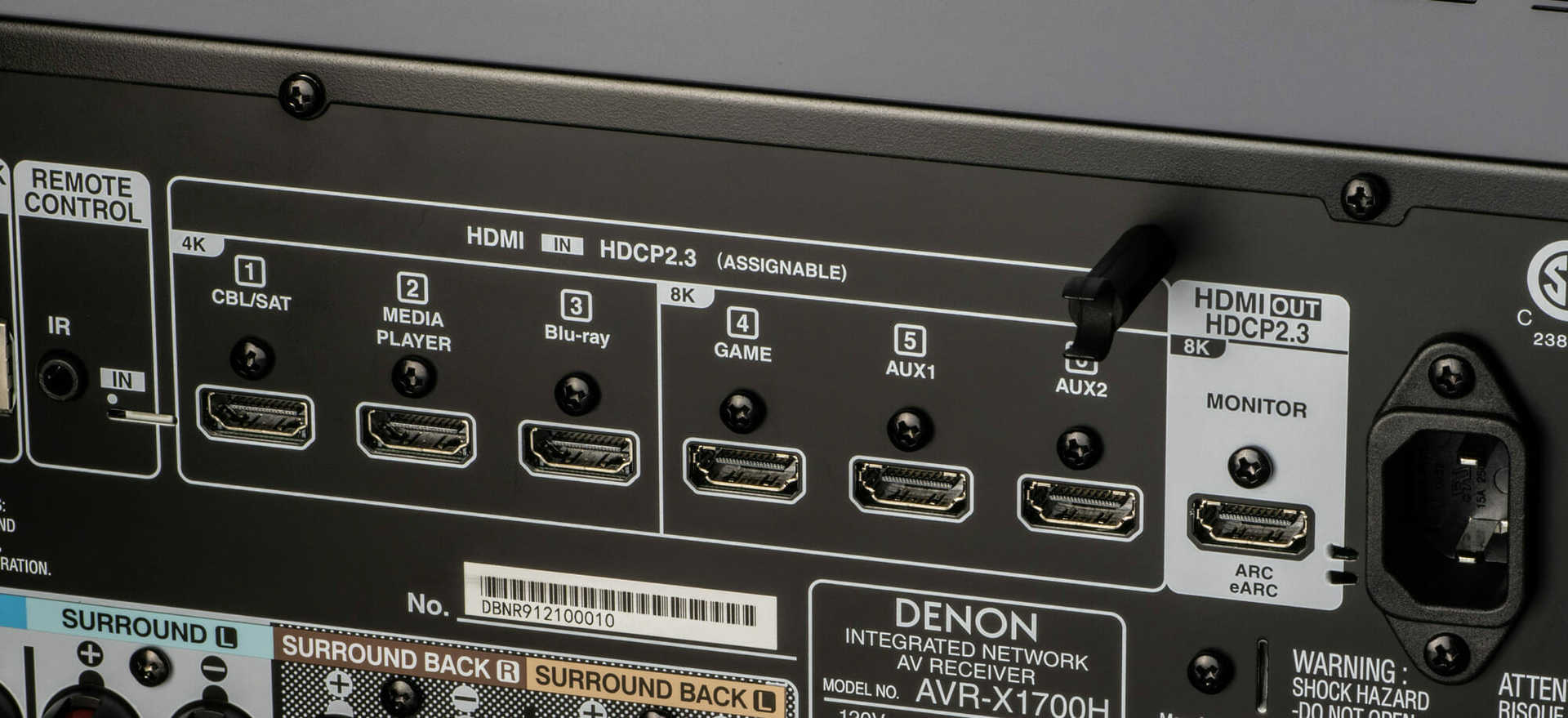

HDMI Inputs: Back / Front

6 (3x 8K) / 0

HDMI max Resolution (8k / 4k)

8k/60 – 4k/120

HDMI Outputs: Main / Zone

1 / –

HDMI to HDMI Scaling

up to 8K 60/50

HDCP2.3 support

Yes

HDMI: 8K / 4K / CEC / eARC

Yes / Yes / Yes / Yes

HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG

Yes / Yes / Yes / Yes

HDMI: ALLM / QMS / QFT / VRR

Yes / Yes / Yes / Yes

HDMI pass-though in standby mode

Yes

Multiroom zones

2

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue

Yes (2ch) / Yes (2ch) / Yes / Yes

HEOS Multiroom integrated

Yes

TV Sound grouping

Yes

Main room multichanel audio – Zone stereo downmix

Yes

Zone Audio Output: Speaker / Preout

Yes / No

Webbrowser User Interface

Yes

IP Control / RS232 Control / Web Control / App Control

Yes / No / Yes / Yes

Auto Speaker Setup by Microphone

Audyssey MultEQ XT

FL Display

1 line

Graphic User Interface – GUI

Hybrid GUI

GUI Languages

9

Voice Control – Works with Amazon Alexa

Yes

Voice Control – Google Assist / Apple Siri

Yes

Setup Assistant

Yes

Quick Select Plus / Quick Select

Yes / No

Firmware Update by: Network / USB

Yes / Yes

Variable Cross Over

Yes

Optimised Bass Redirection

Yes

ECO Mode

Yes

Auto Power Off

Yes

Sleep Timer

Yes
