FBT Vertus Line Array aktivni sistem

FBT Vertus Line Arrey sistem ozvučenja je pravi profesionalni line array system koji može da zadovolji muzičare koji traže kompaktanu I kvalitetnu soluciju za živo muziciranje, studio ili pak manje koncerte.

600W -1200W zvuka iz podnih subova i kristalno čistih satelita. Idealno za manje bendove, ozvučenje na probi ili aplikacije za lako montiranje koje se lagano premeštaju. Lako nadogradivo sa sa extra zvučnicima. Pogledajte sliku u prilogu. Preporuka za ozvučenje FBT.
Ovaj sistem se lako nadogradjuje sa dodatkom jos jednog satelita CLA604 ili Subwoofera CLA208.

Vrlo lagan i lak za montiranje.

Features
The internal Class D amplifier delivers 600W in the CLA 208Sa and 400W + 100W in the CLA 604a. These are
matched with a switch mode power supply and a DSP processor with filtering functions, equalization and speaker protection. Created with the idea of extending the CLA604a’s low frequency performance in live applications, the CLA208Sa serves as the base support for the CLA604a column speaker which can either be frontally mounted to the sub, as well as fixed upon the optional stand through the M20 socket on the upside of the sub. The CLA208Sa subwoofers are modular as well, and they can be stacked to enlarge and increase the maximum SPL.

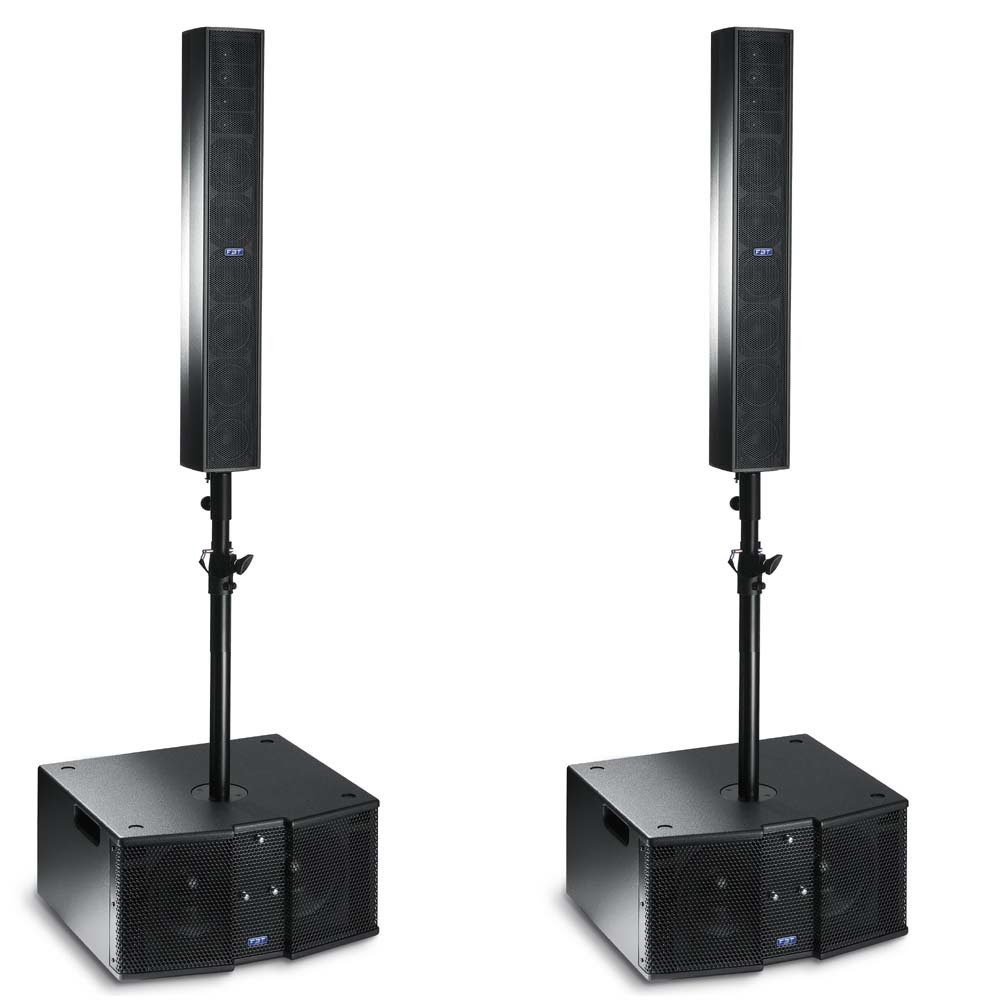

The Vertus system comprises of:
2 x CLA 604a active column speakers
2 x CLA 208Sa active subwoofers

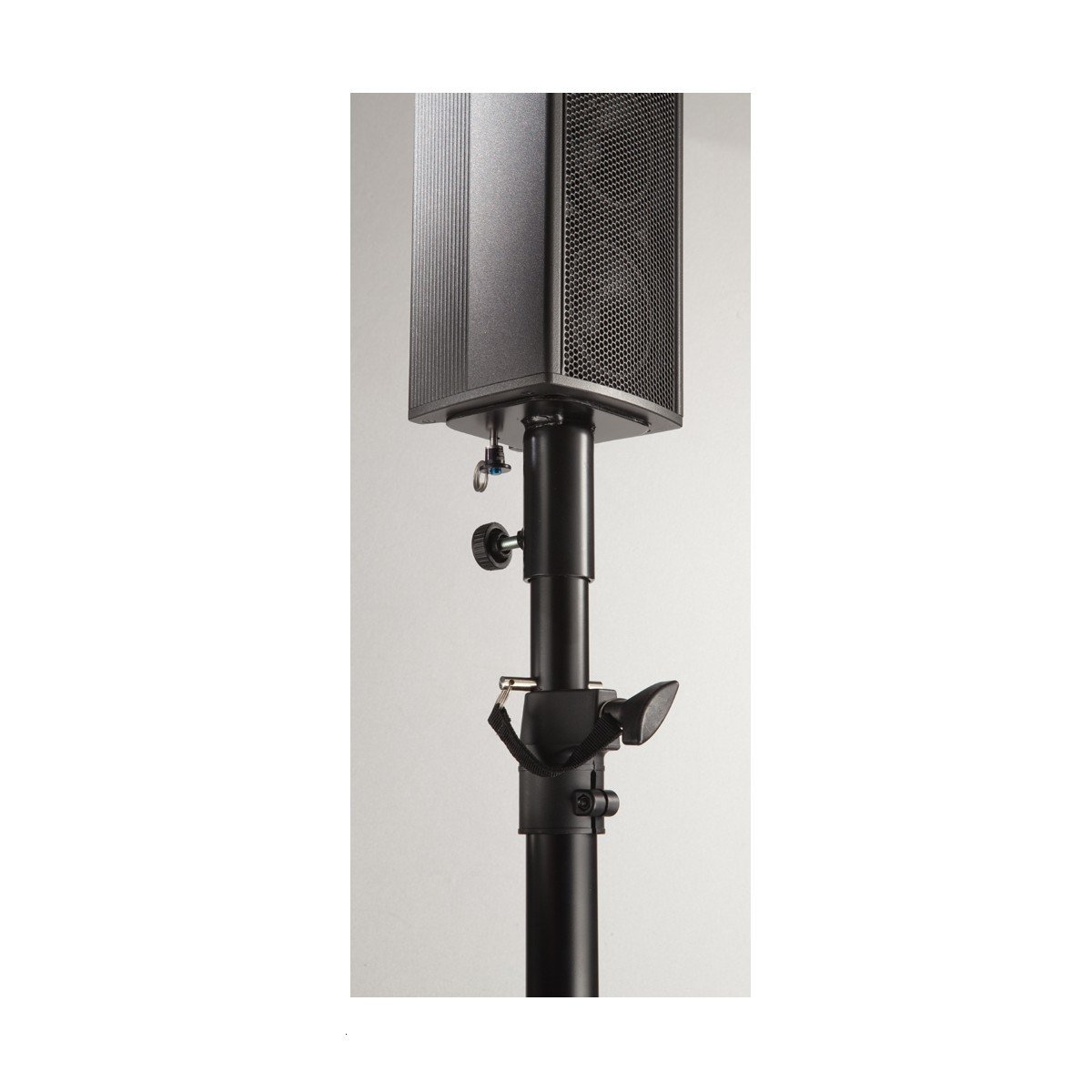

2 x VT-S604 speaker poles
2 x KMS220 Adaptors
4 x Neutrik Powercon Cables

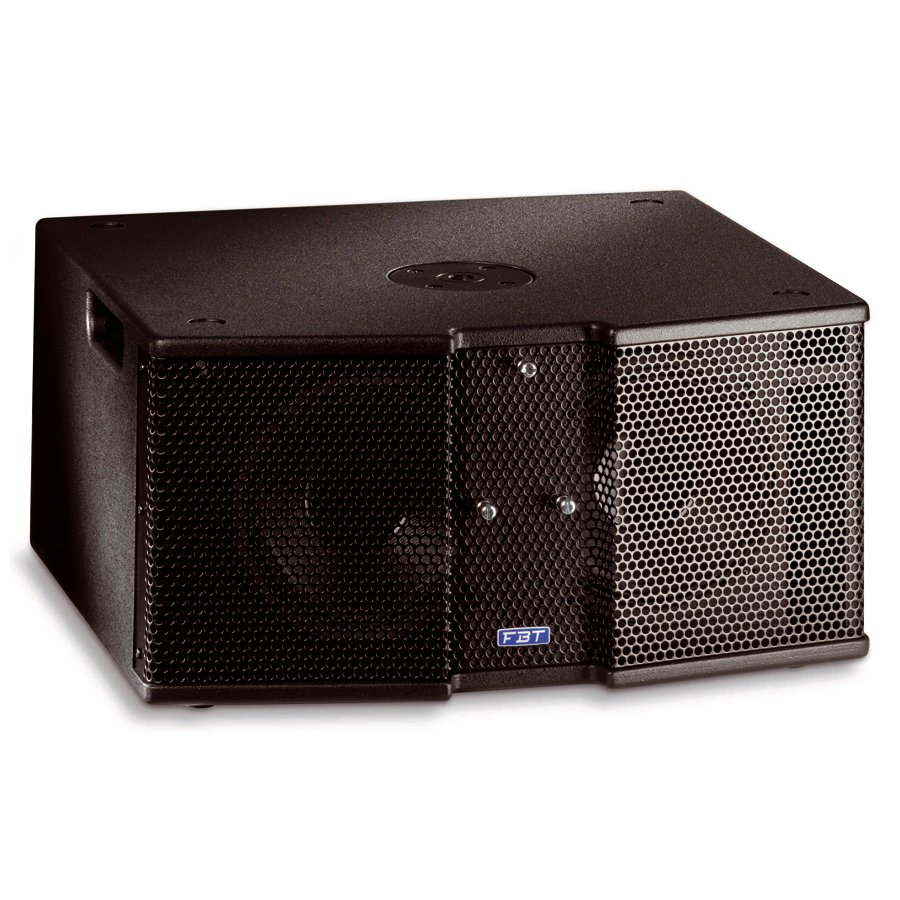

Vertus CLA 208 SA gornji satelit sa 8 zvucnika specifikacija:

Configuration: 1 way
Built-in amplifier LF/HF: 600 W RMS
Built-in amplifier peak LF/HF: 1200 W
Frequency response: 50Hz – 180Hz -6dB
Low Frequency woofer: 2 x 8″ – 2″ coil inch
Maximum SPL cont/peak: 125/129 half space dB
Dispersion: Omnidirectional HxV
Input impedance: 22 Kohm
Crossover Frequency: 0.15 KHz
AC Power requirements: 450 VA
Input connector: stereo XLR with loop,HP out
Power cord: 5 m/ft
Net Dimension (WxHxD): 550x270x500 mm/inch
Net Weight: 20 / 16.4 kg/lb
Transport Dimension (WxHxD): 690x370x625 / 21.7×10.6×19.7 mm/inch
Transport Weight: 23.5 / 51.80 Kg/lb

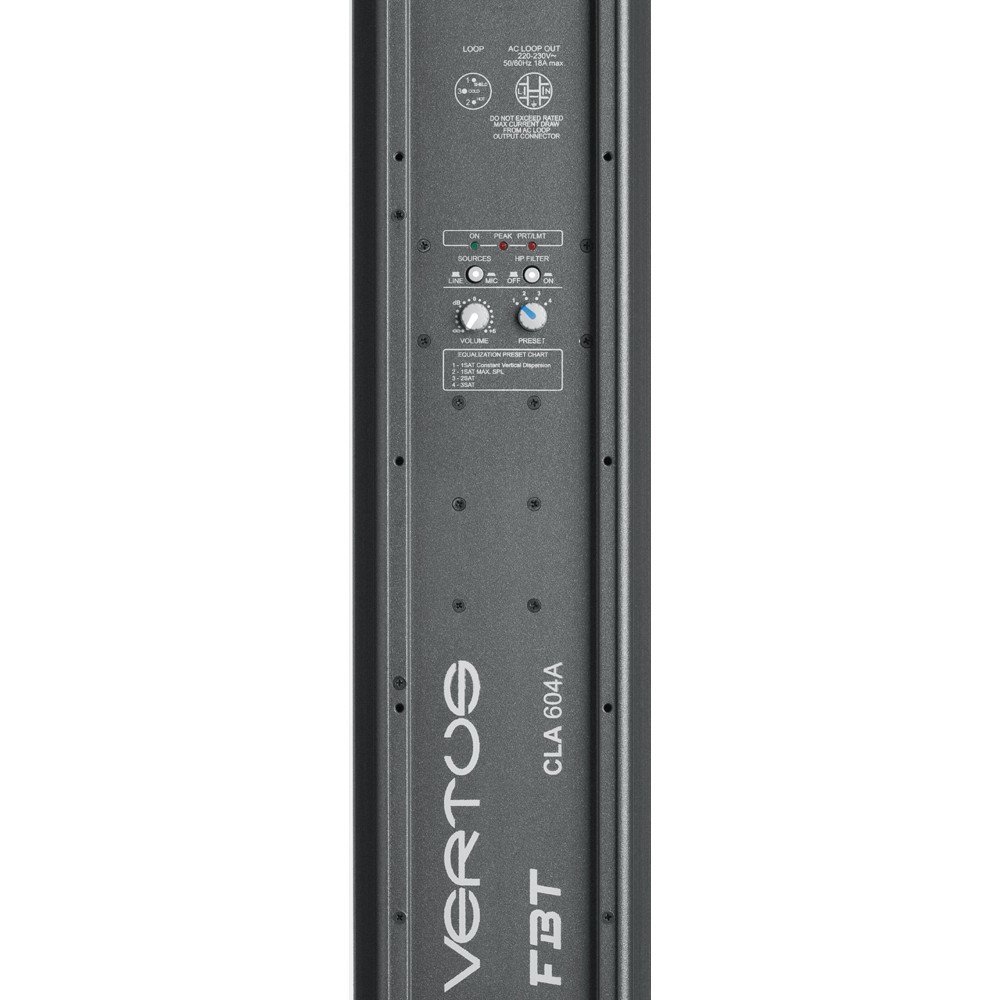

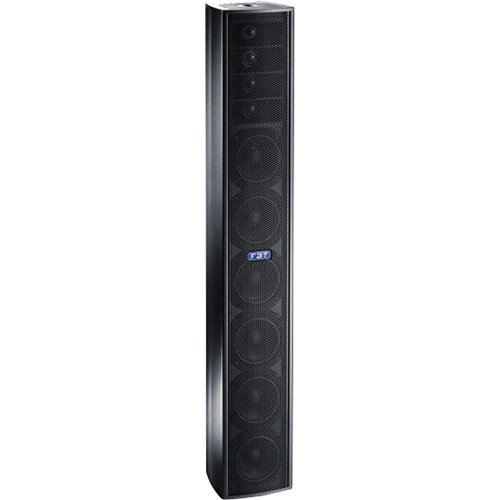

Vertus CLA 604 A Specifications:

Built-in amplifier LF/HF: 400/100 W RMS
Built-in amplifier peak LF/HF: 800/200 W
Frequency response: 130Hz- 20kHz -6dB
Low frequency woofer: 6 x 4″ – 1″ coil inch
High frequency driver: 4 x 1″ – 1″ coil inch
Maximum SPL cont/peak: 122/125 dB
Dispersion: 100° x 20° H x V
Input impedance: 22 Kohm
Crossover frequency: 2.5 KHz
Ac power requirements: 450 VA
Input connector: XLR with loop
Power cord: 5 mm/inch
Net Dimension (WxHxD): 130x841x130 / 5.12×33.1×5.12 mm/inch
Net weight: 9 / 19.84 kg/lb
Transport Dimension (WxHxD): 220x930x220 / 8.66×36.61×8.66 mm/inch
Transport weight: 11.5 / 25.35 kg/lb
