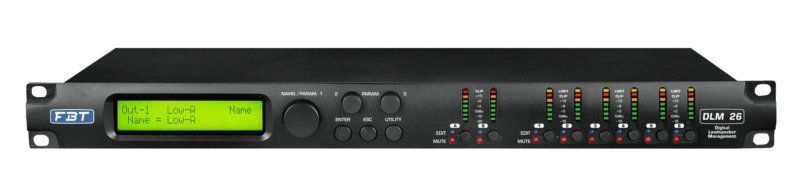

FBT DLM-26 Processor

DIGITAL LOUDSPEAKER MANAGEMENT

The DLM26 is a DSP based  2 input x 6 output Digital Loudspeaker management processor, ideally suited for fixed installations and live events. It combines the functions of a multitude of conventional products in a compact 1U unit with extensive PC remote control capabilities.

Features Superb audio quality with premium hi-end AKM5392 24bit A/D converters and AKM 4396 24bit D/A converters, carefully optimized double precision signal processing coupled with 24bit conversion ensure a dynamic range >110db

The unit can work in STANDARD MODE or in DCL MODE. The first mode permit to configure the crossover in 2×2 way + SUB, 2×3 way or 6way, the input L, R, L+R are freely assignable to each output.

In DCL mode the unit can be configured in 3ch DCL, 2ch DCL + 2ch standard, 1ch DCL + 4ch standard. DCL mode mean double compressor limiter, each DCL channel have a double band limiter and compressor with assignable LO/HI split frequency. This is an exclusive feature in digital processor and it’s very useful to protect two way passive filters with no passive attenuation in the crossover between LF woofer and HF driver. With DCL mode is possible to set two different threshold of protection for woofer and driver with the split frequency corresponding to the passive crossover frequency.



Features:

Special and new features:

– Hi-pass/Lo-pass/Shelving custom Q second order filters

– RMS compressor and PEAK limiter on each output channel with time constant and algorithm optimized for speaker thermal and mechanical protection while maximizing the output with no audible distortion

– Input channel L, R or L + R freely assignable to each output channel

– Double Compressor Limiter Mode (DCL) with two band RMS compressor and Peak limiter with adjustable HP / LP split frequency and separate parameter adj. This is an exclusive and very useful feature in general purpose digital processors

– ALL PASS first and second order filters useful for Cardioid SUB configurations, very precise phase crossover alignment, special pattern control array, alignment between different speakers and systems.
