FBT HiMaxX 40 A Speaker

PROCESSED ACTIVE SPEAKER 1000W + 250W RMS – 133DB SPL

Sa novom HiMaxX serijom, FBT uspostavlja referentnu tačku na tržištu 12″ i 15″ kućišta od ABS plastike  za ozvučavanje. Ove performanse i tehnički sadržaj standarda je nezamisliv do sada. FBT HiMaxX nasao je svoje mesto pored FBT MaxX serija koja traje vise godina, i sa povecanim tehničkim karakteristikama.

Features:

2-way, bi-amplified in Bass-reflex design
B&C custom designed 320 mm (12”) neodymium woofer with 75 mm (3”) voice coil
B&C 25 mm (1”) compression driver with 44 mm (1.7”) voice coil
500Wrms PWM LF power amplifier
150Wrms Class G HF power amplifier
Switch mode power supply for an excellent ratio weight/power
Analog signal processor with limiter

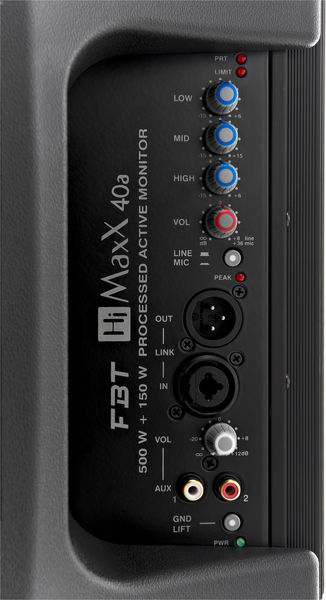

Completely redesigned control panel with:
Gain and Volume functions in a single potentiometer to improve user friendliness improving the dynamic range and input signal/noise ratio

Combo XLR/jack input XLR link

Mic/Line selection

Independent RCA input channel with separate volume control to connect external devices such as MP3, CD, PC players

3-band EQ (Bass, Mid, High)

Ground-Lift

Diagnostic LED

90°H x 60°V constant directivity horn
4 x M10 anchoring points, 35 mm ø (1.38”) top-hat for speaker stand placement and wall bracket mount flange, 2 integrated carrying handles
Enclosure suitable for stacking



Specifications:

Configuration: 2 way
Built-in amplifier LF/HF: 1000/250 W RMS
Built-in amplifier peak LF/HF: 2000/500 W
Frequency response: 45Hz – 20kHz -6dB
Low Frequency woofer: 1×12 – 3 coil inch
High Frequency driver: 1 – 1.7 coil inch
Maximum SPL cont/peak: 127/133 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 Kohm
Crossover Frequency: 1.6 KHz
Input connector: XLR/jack with loop RCA aux
Power cord: 5 / 16.4 m/ft
Net Dimension (WxHxD): 407x634x370 – 16×24.9×14.5 mm/inch
Net Weight: 17.9 / 39.4 Kg/lb
Transport Dimension (WxHxD): 495x720x470 – 19.5×28.3×18.5 mm/inch
Transport Weight: 20.5 / 45.2 Kg/lb
