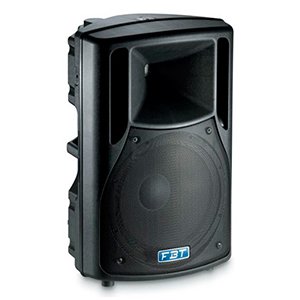

FBT HIMaxX 60 A

With the new HiMaxX series, FBT establishes a reference point on the scenario of 12” and 15” enclosures in polypropylene for sound reinforcement, introducing performance and technical content of a standard unthinkable up until now. FBT HiMaxX takes its place alongside the FBTMaxX series, exalting all the technical features.



Features:

2-way, bi-amplified in Bass- Reflex design
B&C custom designed 380 mm (15”) neodymium woofer with 75 mm (3”) voice coil
B&C 36 mm (1.4”) compression driver with 64 mm (2.5”) voice coil
700Wrms PWM LF power amplifier
200Wrms Class G HF power amplifier
Switch mode power supply for an excellent ratio weight/power
Analog signal processor limiter
Completely redesigned control panel with:
XLR Input and XLR Link
Gain and Volume functions in a single potentiometer to improve user friendliness improving the dynamic range and input signal/noise ratio
3-band EQ (Bass, Mid, High)
Ground-lift
Diagnostic LED
90°H x 60°V constant directivity horn

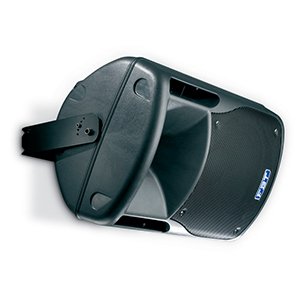

4 x M10 anchoring points, 35 mm ø (1.38”) top-hat for speaker stand placement and wall bracket mount flange, 2 integrated carrying handles



Specifications:

Configuration: 2 way
Built-in amplifier LF/HF: 1100/250 W RMS
Built-in amplifier peak LF/HF: 2200/500 W
Frequency response: 40Hz – 20kHz -6dB
Low Frequency woofer: 1×15 – 3 coil inch
High Frequency driver: 14.4 – 2.5 coil inch
Maximum SPL cont/peak: 129/135 dB
Dispersion: 90° x 60° HxV
Input impedance: 22 Kohm
Crossover Frequency: 1.2 KHz
Input connector: XLR with loop
Power cord: 5 / 16.4 m/ft
Net Dimension (WxHxD): 482x757x600 – 19×29.8×16.8 mm/inch
Net Weight: 28.3 / 62.4 Kg/lb
Transport Dimension (WxHxD): 520x867x600 – 20.4×34.1×23.6 mm/inch
Transport Weight: 30.3 / 66.8 Kg/lb
