FBT J-Series J 5 Speaker

SOUND REINFORCEMENT MONITOR 80W – 117DB SPL

The new J series is a technologically advanced range of products that improves on the performance of the previous Jolly line.  The new J series is a competitive, value for money range of speakers.
The range is based on the development of three new high efficiency class-D amplifiers with power specifications of 350 + 100W for the J 15A & J 12A, 200 + 50W for the J 8A and 80 + 40W for the J 5A.



Features:

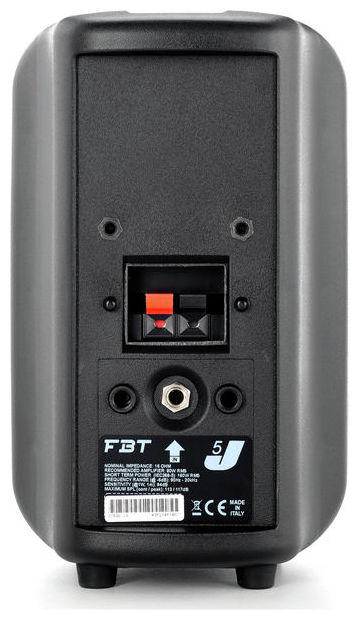

Input panel with jack and ternimal connector for bare wires
Avaiable in white color J 5W



Specifications:

Configuration: 2 way
Recommended amplifier: 80 W RMS
Long Term power: 40 W
Short term power: 160 W
Nominal impedance: 16 ohm
Frequency response: 90Hz – 20KHz -6dB
Low Frequency woofer: 5 – 1 coil inch
High frequency driver: 1 dome – 0.75 coil inch
Sensitivity (@1W/1m): 94 dB
Maximum SPL cont/peak: 114/117 dB
Dispersion: 90°x90° HxV
Crossover Frequency: 3.5 KHz
Recommended HP filter: 80hz – 24dboct
Input connector: 1 x jack terminal strip
Net Dimension (WxHxD): 170x275x180 – 6.69×10.82×7.08 mm/inch
Net Weight: 3.4 / 7.49 kg/lb
Transport Dimension (WxHxD): 240x345x235 – 9.44×13.58×9.25 mm/inch
Transport Weight: 4.2 / 9.25 kg/lb
