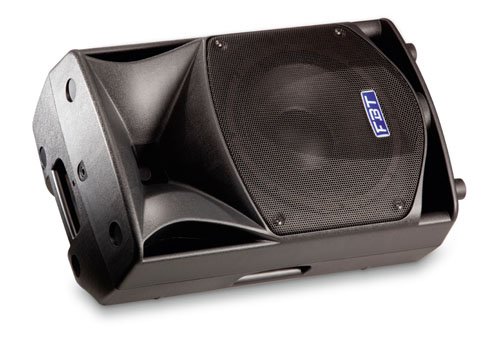

FBT PROMaxX 14 Speaker

PASSIVE REINFORCEMENT SPEAKER 700W/8OHM 132DB SPL



Features:

Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
Speakon NL-4 IN and LINK OUT connectors



Specifications:

Configuration: 2 way
Recommended amplifier: 700 W RMS
Long Term power: 350 W
Short term power: 1400 W
Nominal impedance: 8 ohm
Frequency response: 50Hz – 18KHz -6dB
Low Frequency woofer: 1×14 – 3 coil neodymium inch
High frequency driver: 1×1.4 – 2.5 coil inch
Sensitivity (@1W/1m): 100 dB
Maximum SPL cont/peak: 128/132 dB
Dispersion: 90°x60° HxV
Crossover Frequency: 1.3 KHz
Recommended HP filter: 40hz – 24dboct
Input connector: 2 x speakon NL4 in&thru
Net Dimension (WxHxD): 402x644x345 / 15.8×25.4×13.6 mm/inch
Net Weight: 16/35.2 kg/lb
Transport Dimension (WxHxD): 500x745x440 / 19.7×29.3×17.3 mm/inch
Transport Weight: 19 / 41.8 kg/lb
