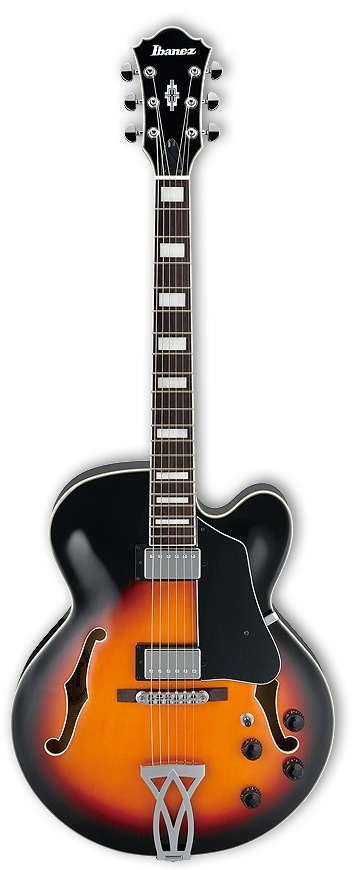

Ibanez AF 75 BS Electric Acoustic Guitar

Ibanez introduced Artcore in 2002 and has been the hollow-body guitar of choice for musicians for the last 10 years.

The Artcore’s combination of quality workmanship and affordability has created legions of fans from diverse genres as blues, country, rock and jazz. Musicians can find the purity of an old school style jazz-box to a hybrid semi-hollow rocker. Artcore is highly respected for its tone, sustain and the way they hold their tuning and how the series continues to push the boundaries of guitar building.



SPEC

neck type: Artcore Mahogany set-in neck

body: Maple top/back/sides

fretboard: Bound Rosewood fretboard w/Acrylic block inlay

fret: Medium frets

number of frets: 20 frets

bridge: ART-1 bridge

tailpiece: VT60 tailpiece

neck pickup: Classic Elite (H) neck pickup (Passive/Ceramic)

bridge pickup: Classic Elite (H) bridge pickup (Passive/Ceramic)

hardware color: Chrome



NECK DIMENSIONS



Scale                             628mm/24.7″

a : Width at Nut              43mm

b : Width at Last Fret      56mm

c : Thickness at 1st        21mm

d : Thickness at 12th      24mm (at 9F)

Radius                           305mmR



BODY DIMENSIONS



a : Length          19 1/2″

b : Width           15 3/4″

c : Max Depth    3 5/8″
