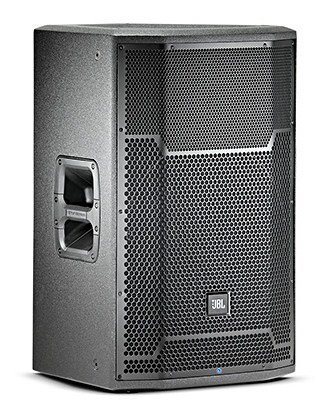

JBL PRX 715 aktivni zvučnik

• 136 dB peak SPL

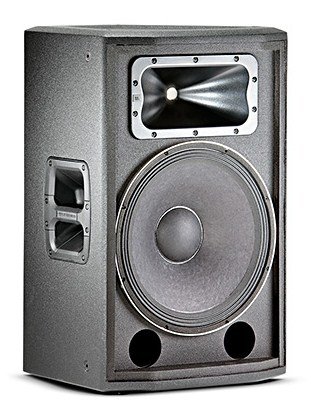

• 15″ Differential Drive® low-frequency driver for low-distortion and higher SPL
• 1.5″ diameter next generation JBL neodymium compression driver
• JBL designed waveguide for accurate coverage
• Efficient Class-D amplifier technology
• Optimized EQ for monitor or front-of-house applications
• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
• Line level and direct microphone input capability
• Professional XLR-1/4″ combination inputs, RCA inputs, and XLR loop-through

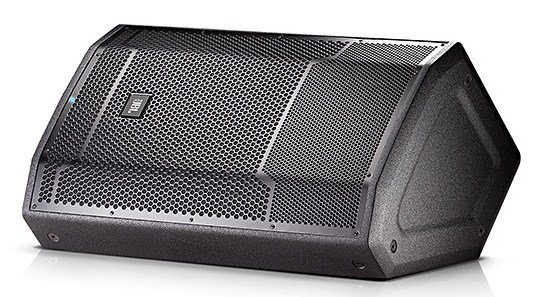

• Multi-angle enclosure for main PA or floor monitor applications
• Integrated 36 mm pole mount socket with angle down tilt
• Injection molded handle with backing cup for easy transport
• Integrated M10 suspension points for easy setup
• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
• Cloth backed, dent-resistant 16 gauge steel grilles

SPECIFICATIONS

• Power Rating: 1500 W
• AC Power Input: 100V – 240V~ 50/60 Hz
• Frequency Range (-10 dB):

1. Main: 42.9 Hz – 19.5 kHz
2. Monitor: 43.6 Hz – 19.3 kHz

• Frequency Response (±3 dB):

1. Main: 58.1 Hz – 17.2 kHz
2. Monitor: 60.7 Hz – 16.7 kHz

• Coverage Pattern:90° x 50° nominal
• Directivity Index (DI): 10.2 dB
• Directivity Factor (Q): 10.4
• Crossover Frequency: 1.7 kHz
• Maximum SPL:

1. Normal: 136 dB
2. Boost: 136 dB

• Signal indicators:

1. Limit: Yellow LED indicates peak output has been reached and dsp
2. limiter is acting
3. Signal: Green LED indicates signal present
4. Power/Standby: Blue indicates system has power and ready to pass audio,
5. Red indicates system has power but is in a power saving mode and will not
6. pass audio.

• Dynamic Control (Input): dbx Type IV™ limiter circuit
• Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
• LF Driver: 1 x JBL 275G (15 in) woofer
• HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
• Enclosure: Asymmetrical, 18 mm, plywood
• Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points
• Transport: 1 x injection molded handles with backing cup
• Finish: Obsidian DuraFlex™ finish
• Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

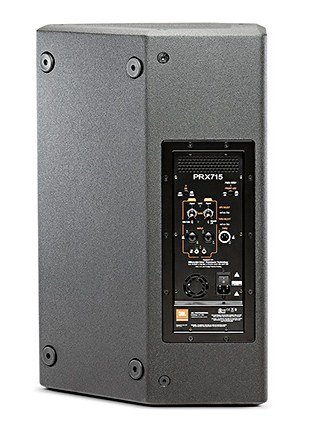

• Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Output Connectors: 1 male XLR balanced output
• Dimensions (H x W x D):714.43 mm x 445.13 mm x 358.71 mm
• Neto težina:21.6 kg
