Markbass Little Mark Tube Bas pojačalo

Little Mark Tube daje toplinu i bogatstvo u cevasto predpojačalo, ili čist signal u statičko predpojačalo… ili mešavinu oba!

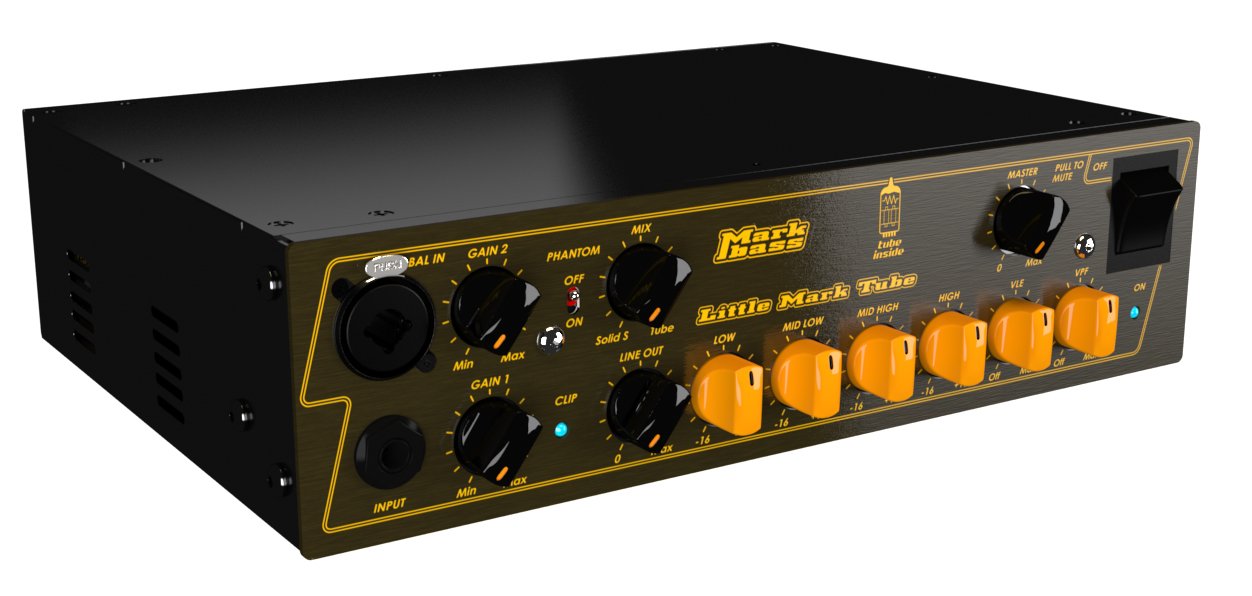

On the front panel there are also two inputs with separate gain controls: one 1/4” jack, and one combo jack that accepts either a XLR or 1/4” cable.



Additional features include switchable 48V phantom power for the XLR input, solid-state/tube mix control, four bands of equalization, VLE and VPF filters, line out level control, pre-post EQ switch for the XLR out (on rear panel), and mute control (push-pull on the master knob).



TECHNICAL SPECS:
INPUTS
INPUT 1: impedance 500 Kohm, max. voltage 15 Vpp
INPUT 2: (Balanced XLR/1/4″ combo)
BALANCED: impedance 500 Kohm, max. voltage 15 Vpp, phantom power 48V
EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp
CONTROLS
GAIN 1: -60 dB to +23 dB range
GAIN 2: -60 dB to +23 dB range
MIX: mixes tube and solid state gain
MASTER VOLUME
LINE OUT LEVEL

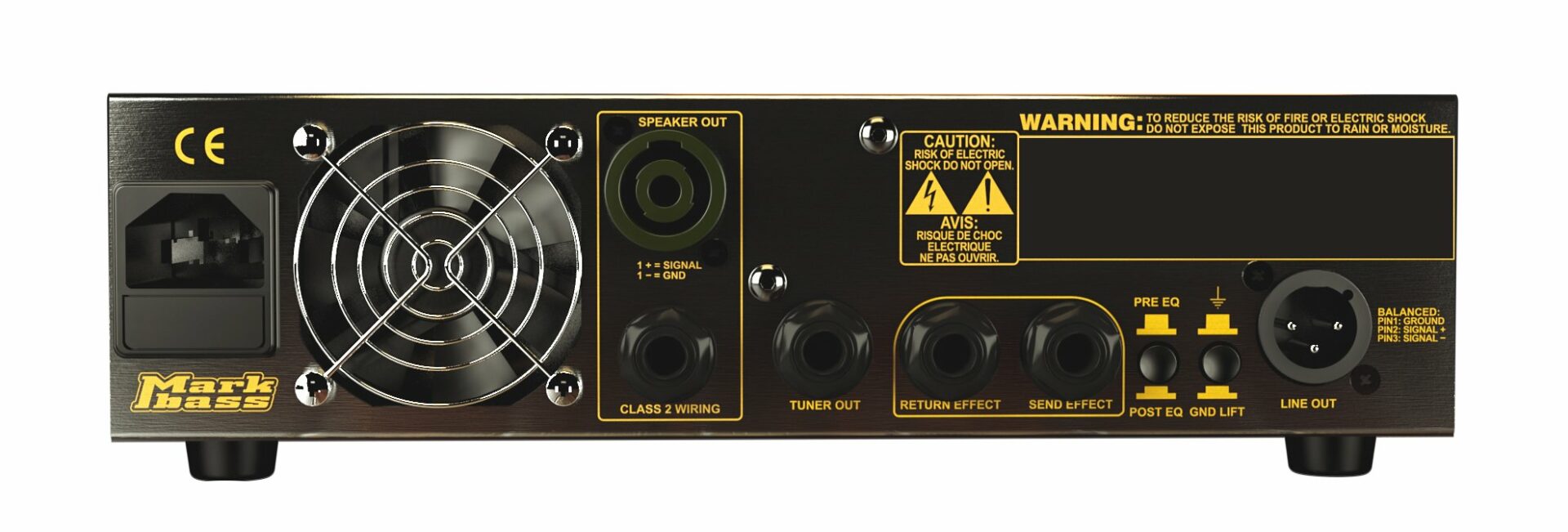

GROUND LIFT (switch on rear panel)
PRE/POST EQ  (switch on rear panel)
MUTE (push/pull on master knob)
EQUALIZATION
LOW: center frequency 40 Hz; level: ±16 dB
LOW MID: center frequency 360 Hz, level: ±16 dB
HIGH MID: center frequency 800 Hz, level: ±16 dB
HIGH: center frequency 10 kHz, level: ±16 dB
VPF (Variable Pre-shape Filter) center frequency 380 Hz
VLE (Vintage Loudspeaker Emulator) frequency range 250 Hz-20 kHz
OUTPUTS
LINE OUT: balanced XLR, max. voltage 20 Vpp
EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
TUNER OUT: unbalanced, max. voltage 2 Vpp
SPEAKER OUT: speakon/1/4″ combo, 1/4″
OTHER
WEIGHT: 5.07 lbs / 2.3 kg
WIDTH: 10.87 in. / 27.6 cm
DEPTH: 9.84 in. / 2.5 cm
HEIGHT: 3.27 in. / 8.3 cm
OUTPUT POWER: 500W RMS @ 4 ohms / 300W RMS @ 8 ohms
POWER REQUIREMENT: 100/120V; 230V; 240V – 50/60Hz (Voltage is factory preset according to region of sal
