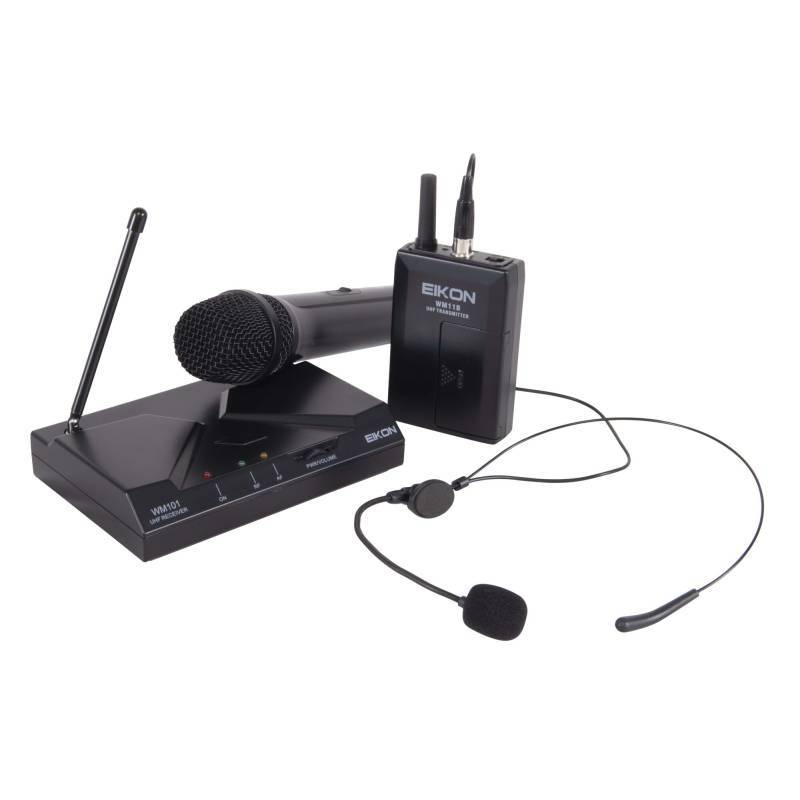

Proel WM700KIT V2 bežični set sa mikrofonom i pilot mikrofonom

Proel WM700 KIT V2 bežični set sa mikrofonom i pilot mikrofonom

Bežični mikrofon VM101KITV2 je UHF sistem fiksne frekvencije – Digitalno šifrovanje – 863/865 frekvencijski opseg. – Domet od 30 metara – Do 3 istovremene frekvencije u svakom opsegu – ABS ​​kućište. – 1 Bodipack slušalice + 1 ručni kardioidni predajnik

RECEIVER
Receiver Type	UHF Band
Frequency Range	863-865 MHz
RF Frequency Stability	±0.002 %
RF Image/Spurious Rej.	> 70 dB
RF Interference Reject.	> 70 dB
RF Sensibility	-105 dBm
Frequency Response	50 – 15000 Hz
Modulation Method	PCM Digital 24 bit
THD Distortion	< 1%
Dynamic Range	> 90 dB
S/N Ratio	> 100 dB
Power Requirement	12 V DC / 500 mA
Output Connector	Unbalanced ¼ “ jack
Dimensions (mm)	H 45 x L 150 x W 118

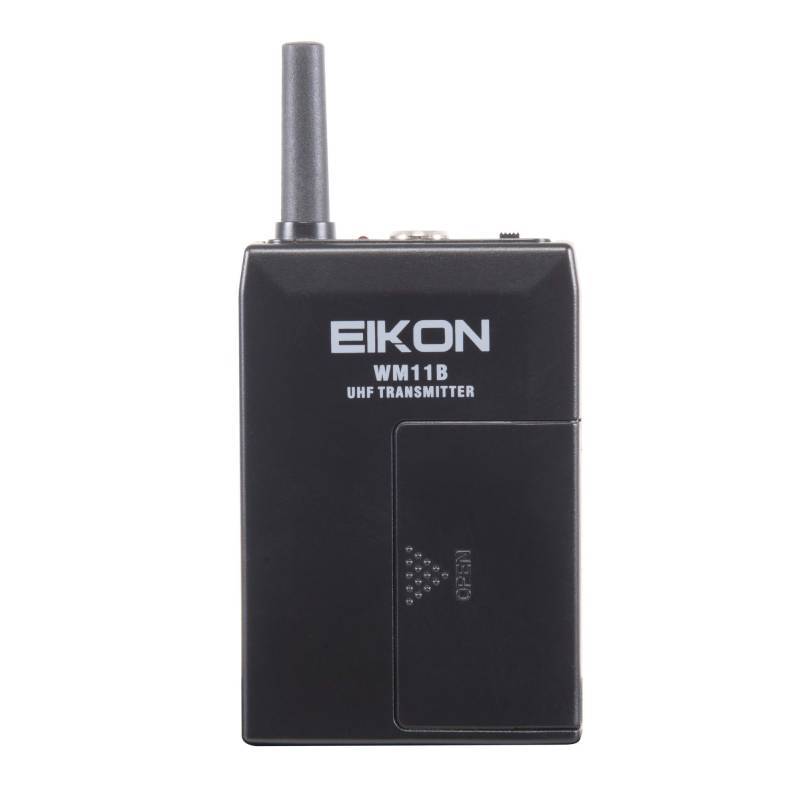

BELT-PACK TRANSMITTER
Carrier Frequency Range	UHF: 863-865 MHz
Modulation method	FM (F3E)
Transmitting Power
Transmission Distance	Up to 25 m (Open Space)
RF Frequency Stability	±0.002 %
RF Max deviation	±50 KHz
Audio Modulation	PCM Digital 24 bit
Spurious Emission	under limits EN 300422
Frequency Response	50 – 15000 Hz

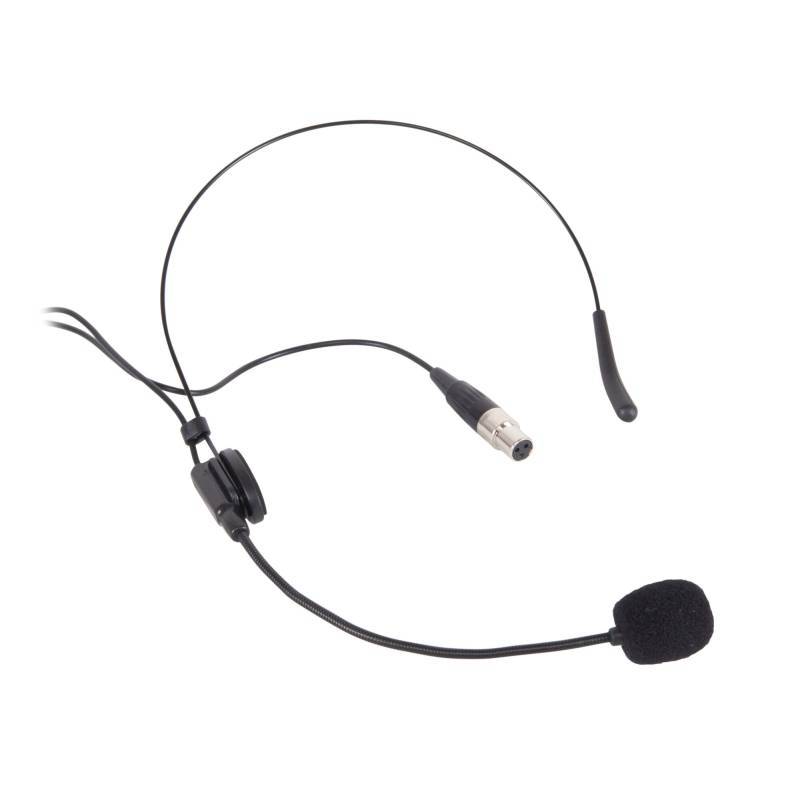

HCM25 Mic Capsule Headset	Back electret condenser
Polar Pattern	Cardioid
Power Requirement	2×1.5V AA type
Battery Life	Up to 8 hours
Dimensions (mm)	H 95 x L 65 x W 23

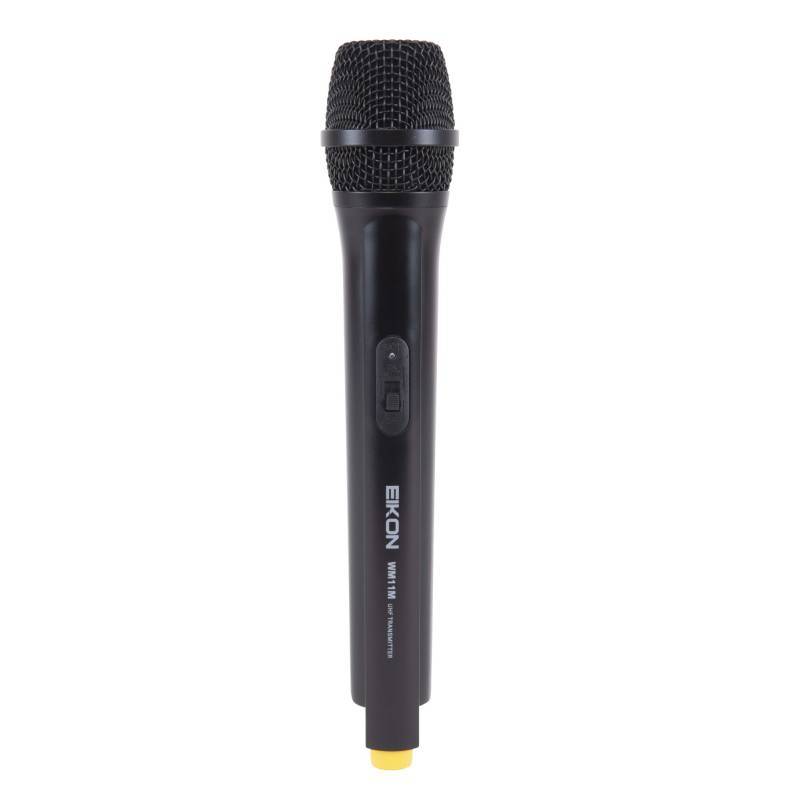

HANDHELD TRANSMITTER
Carrier Frequency Range	UHF: 863-865 MHz
Modulation method	FM (F3E)
Transmitting Power	< 10 dBm Max ERP
Transmission Distance	Up to 25 m (Open Space)
RF Frequency Stability	±0.002 %
RF Max deviation	±50 KHz
Audio Modulation	PCM Digital 24 bit
Spurious Emission	under limits EN 300422
Frequency Response	50 – 15000 Hz
Mic Capsule	Dynamic
Mic Polar Pattern	Cardioid
Power Requirement	2×1.5V AA type
Battery Life	Up to 8 hours
Dimensions (mm)	260 x Ø 45
