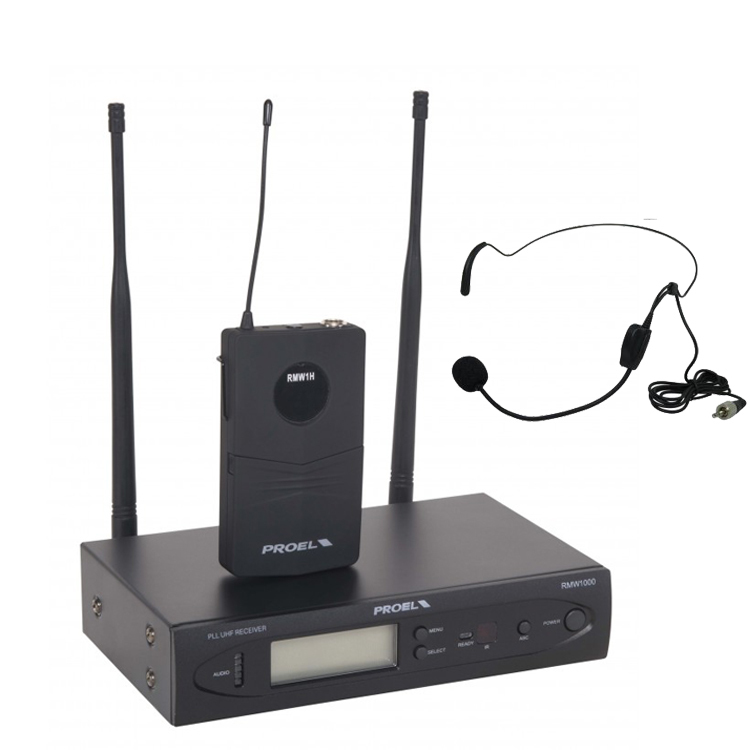

Proel RMW1000H bežični pilot mikrofon

Proel RMW1000H Bežični pilot mikrofon



Specifikacija :

• Available requency ranges: 581 – 581 MHz.
• 50 meter / 160 feet range
• 50 Hz – 15 KHz frequency response
• -105 dB signal / noise ratio
• 121 selectable channels
• True Diversity antenna
• Up to 6 systems usable in the same location
• Automatic channel scan
• BNC connectors antenna  x 2
• IR sync
• ABS carrying and storage case

Tehnička specifikacija :

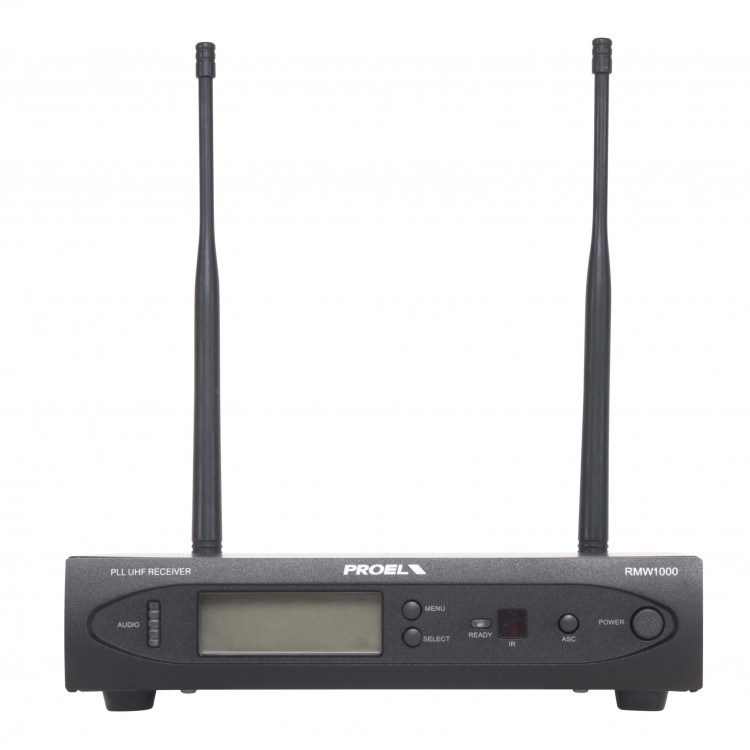

RECEIVER

Receiver type: PLL synthesized
Frequency range: UHF
Frequency stability: 0,01%
Modulation Method: FM ( 3 )
Audio Frequency response: 50 Hz – 15 Khz
Thd: < 0,8%

Dynamic range: ≥ 100 dB
Sensitivity: -105 dB for 12dB SINAD
Output level: -13 dBv Balanced -2dBv, unbalanced ¼ jack
Power supply: Dc 12-18 Volt 150 mA
Dimension: 197( L) x 134(D) x 42(H) mm
Weight: 0.820 Kg

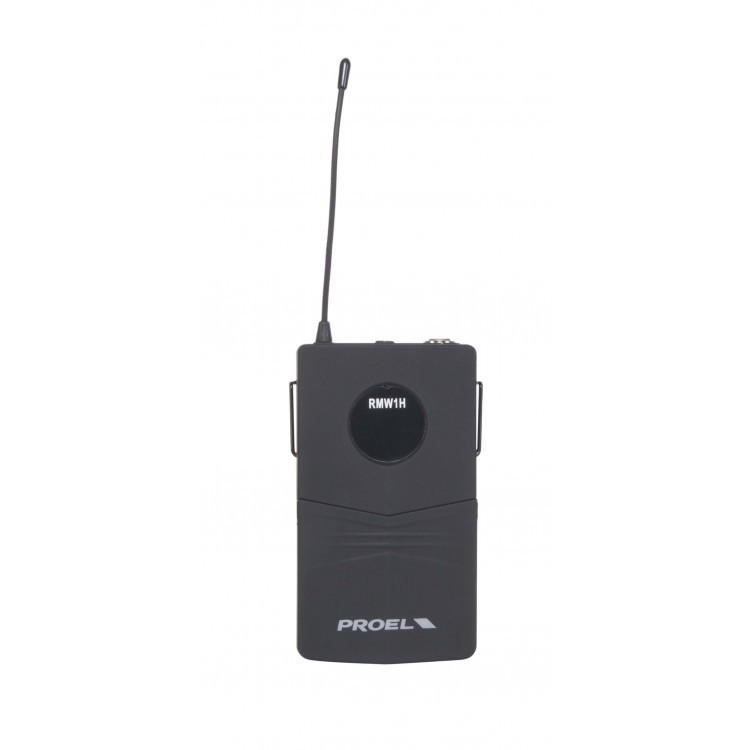

TRANSMITTER

Transmitter type: PLL synthesized

• Frequency range: UHF
  Frequency stability: 0,01%
  Modulation Method: FM ( 3 )
  Audio Frequency response: 50 Hz – 15 Khz
  Thd: < 1%
  Dynamic range: ≥ 100 dB
  S/N ratio: ≥ 90 dB
  RF output power: 10 mW
  Current drain: 160 mA
  Tone pilot frequency: 30 ~ 33 Khz
  Microphone Condenser: Headset
  Battery: 2 x 1.5 Volt “AA” type
  Autonomy: 8 hours
  Dimension: 64 ( L) x 19(D) x 108 (H) mm
  Weight: 0.15 Kg

Zemlja porekla: Kina
