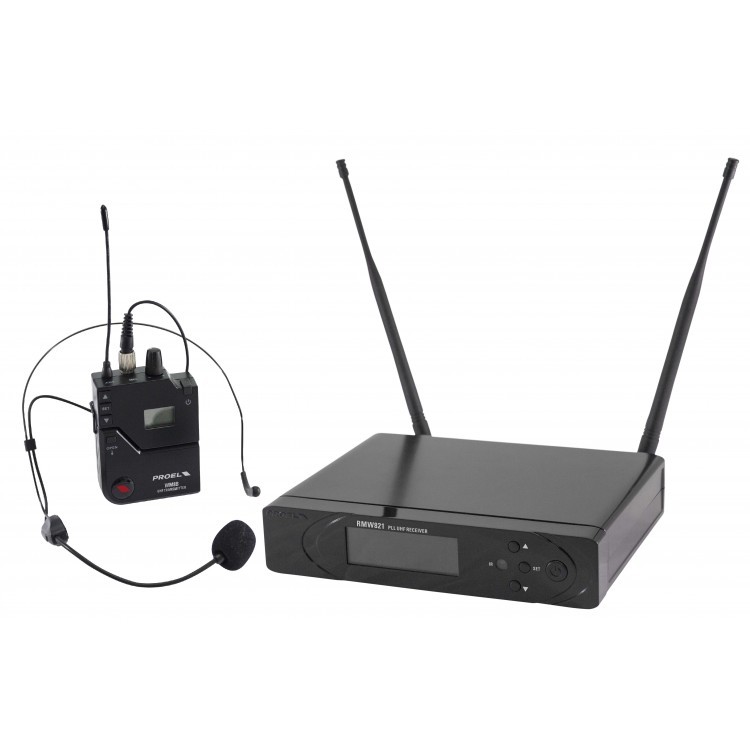

Proel RMW821H bežični pilot mikrofon

Proel RMW 821H bežični mikrofon

Specifikacija :

• UHF Dual Band 821 – 832 and 863 – 865 MHz
• Frequencies selectable in steps of 25 kHz
• Up to 50 mt /100 feet range (open space)
• IR Synchronization
• True Diversity receiver
• Up to 5 systems usable in the same location depending on the circumstances
• ABS carrying and storage case

Tehnička specifikacija :

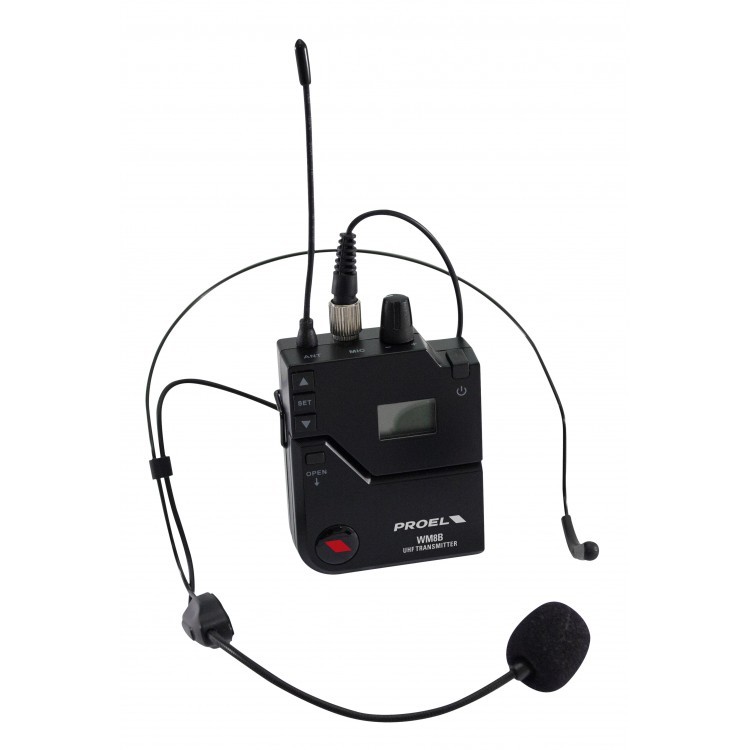

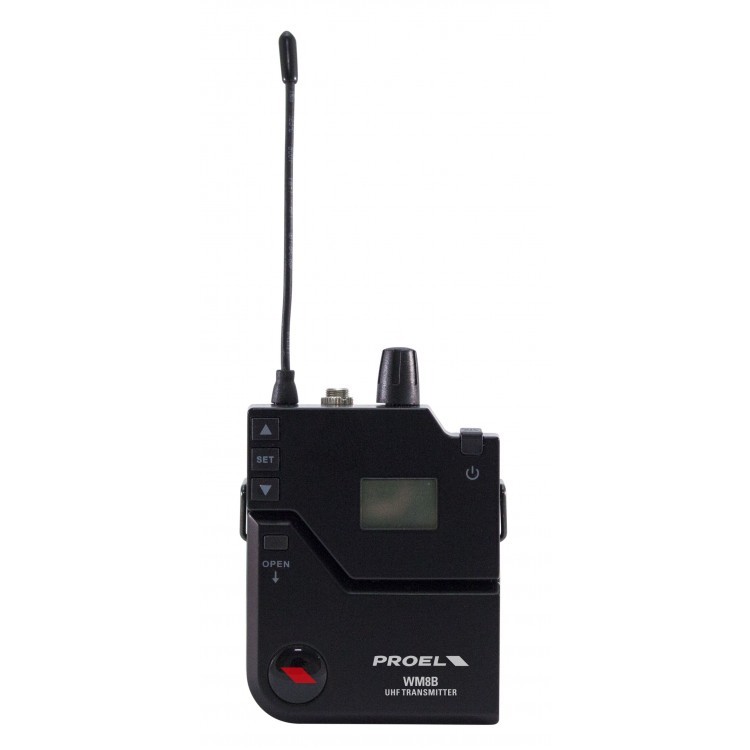

WM8B BODYPACK TRANSMITTER
Carrier Frequency Range	821 – 832 MHz and 863 – 865 MHz
Modulation Method	FM (F3E)
Transmission Distance	Up to 50 m (open space)
RF Frequency Stability	0,00%
Audio Frequency Response	50 -15000 Hz
RF Max Deviation	±50 kHz
Spurious Emission	Under limits EN300422
RF Output Power	< 10 dBm Max Erp (Effective Radiated Power)
Mic Capsule Headset	Back electret condenser
Polar Pattern	Omnidirectional
Power Requirement	2 x 1,5 Volt AA type
Battery Life	Up to 8 hours
Dimensions	H 73 x L 58 x W 22 mm

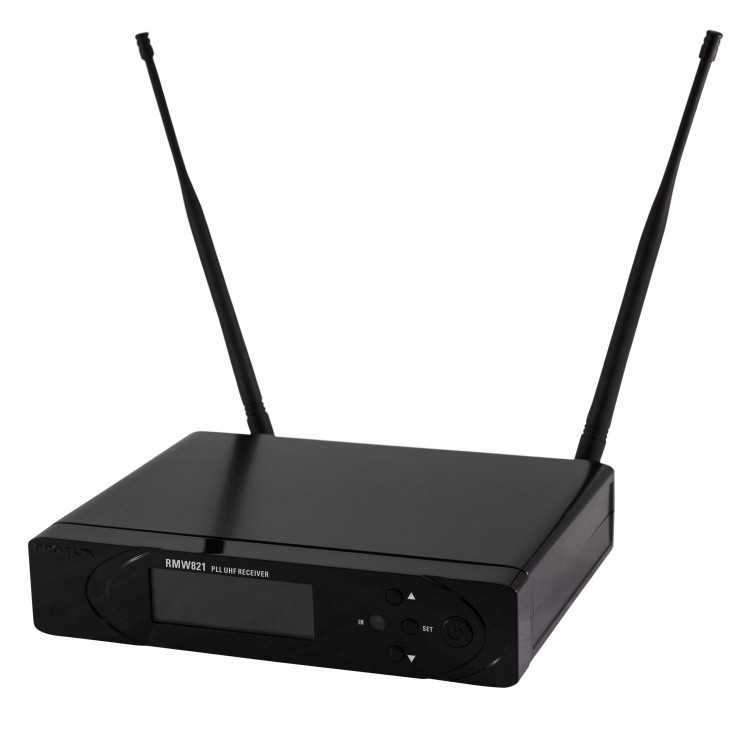

WM821 RECEIVER
Receiver Type	UHF Band
Frequency Range	821 – 832 MHz and 863 – 865 MHz
RF Frequency Stability	0,00%
Modulation Method	FM (F3E)
RF Image / Spurious Rej	> 70 dBm
RF Interference Rej	> 70 dBm
Sensitivity	-105 dB
Audio Frequency Response	60 – 18000 Hz
THD	< 1 %
Dynamic Range	> 90 dB
S/N Ratio	> 100 dB
Power Requirement	+12 – 15 vdc 500 mA
Output Connector	Unbalanced  ¼ “ jack – XLR 3 balanced
Dimensions	H 45 x L 210 x W 160 mm

Zemlja porekla: Kina
