Topp Pro MXI 3 Mixer sa USB

Topp pro MXI 3 Mixer sa USB

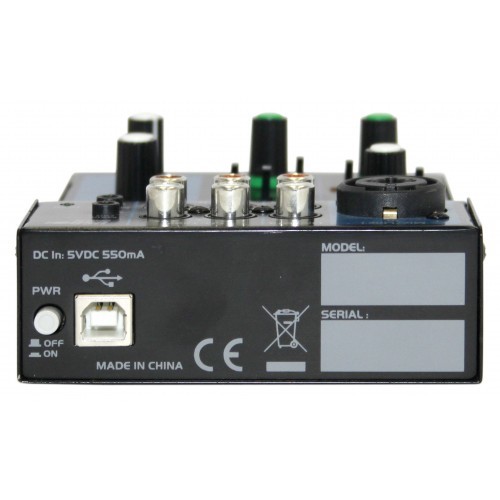

Topp pro MXI 3 Mixer sa USB  kompaktan, prenosiv i svestran mikser. Praktičan je i malih dimenzija, ali u svojoj maloj veličini sadrži moćne funkcije, 3 kanala, mikrofonski ulaz, 2 kanala sa ekvilajzerom, RCA ulaze i izlaze, USB konekciju.fantom napajanje, suopcije koje prevazilaze dimenzije ove pasivne miksete.



	TP MXI3
Frequency Response	Mic Input to any Output 10 Hz to 40 kHz(0, -1dB) (Gain @ 0 dB, Rated output level) 10 Hz to 400 kHz(0, -3dB)
Distortion (THD&N)	Mic Input to MAIN Output(Gain @ 0 dB, Rated output level @ 20 Hz-20 kHz bandwidth) 0.01% (A-weighted)
MIC EIN (Equivalent Input Noise)	Input: Channel INPUT MIC (Rs = 150 Ohm Gain @ Max.,20 Hz-20 kHz bandwidth) -118dBu (A-weighted)
CMRR	Mic in to main out(Gain @ Max.,@ 1 kHz)70dB 70dB
Input Gain (20 Hz-20 kHz)	Mono Channel MIC: 0 to 48dB, LINE: -35 to +15dB Stereo Channel —
Attenuation (Crosstalk) (20 Hz-20 kHz)	Line in, 1/4″ TRS Main Out,1 kHz relative to 0 dBu, 22 Hz ~ 22 kHz Filter, Gain @ unity. Main Mix knob/fader @ -8 -79dBu (A-weighted) Channel Level knob/fader @ -8 -79dBu (A-weighted)
Rated Output Level	Main, Aux, Control Room output (all knob/fader @ 0 dBu,1 kHz) 0dBu
Maximum Output Level	Main, Aux, Control Room output (all knob/fader@ 0 dBu,1 kHz, 22 Hz 22 kHz Filter,THD @ 1%) +17dBu
Maximum Voltage Gain (EQ and PAN/BAL knob@ 0 dB, Other all knob orfader @ max, DFX mute, 1 kHz, Rs=600 Ohm)	Mono Channel MIC INPUT MAIN OUT (3.5mm jack stereo) 69dBu Mono Channel MIC INPUT Monitor (3.5mm jack stereo) 78dBu Mono Channel MIC INPUT TAPE OUT (RCA) 69dBu Mono Channel LINE INPUT MAIN OUT (3.5mm jack stereo) 53dBu Stereo Channel LINE INPUT MAIN OUT (3.5mm jack stereo) 16dBu TAPE INPUT MAIN OUT (3.5mm jack stereo) 6dBu TAPE INPUT Monitor (3.5mm jack stereo) 9dBu
Main mix Noise (20 Hz-20 kHz bandwidth)	MAIN OUT (all knob/fader @ 0 dBu, 22 Hz-22 kHz Filter,Gain @ unity) Main Mix knob/fader @ -8 ,Channel Level knob/fader @ -8 -120dBu (A-weighted) Main Mix knob/fader @ 0dB, Channel Level knob/fader @ -8 -100Bu (A-weighted) Main Mix knob/fader @ 0dB, Channel Level knob/fader @ 0dB -98dBu (A-weighted)
Equalization	(Mono channels) Stereo Channels High +/-15 dB @12 kHz High +/-15 dB @12 kHz Low +/-15 dB @80 Hz Low +/-15 dB @80 Hz
PEAK Indicator	Channel 1 Channel 2
VU Meters	Main Left and Right (1-segment) Clip +15dBu
Impedance	Microphone Input 2.6k Ohms Line Input 10k Ohms Tape Input 10k Ohms Main Outputs 120 Ohms Phones Output 120 Ohms Tape Output 1K Ohms
USB SECTION	USB Interface USB 2.0 full speed compliant ADC & DAC 16-Bit Delta-Sigma,44.1kHz Sampling Rates Operating System Windows 2000,XP or higher, Mac OS 9.0.4 or higher, 10.Xor higher
Phantom power	Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced 1=GND, 2=HOT, 3=COLD) +20V
Power supply	Adaptor DC5V, 500mA USB Connection DC5V, 500mA
Power Consumption	2.5W
Physical	Dimension (L*W*H) 98 mm*136 mm*34 mm Weight 0.48Kg (1.1 lbs)

 Zemlja porekla: Kina
