Topp Pro MXI 1222 CFX pasivna mikseta
SKU: topp-pro-mxi-1222-cfx-pasivna-mikseta54.850 RSD
Preuzimanje
Direktna kupovina iz radnje
Dostava
• Na stanju
- Kategorija:
- Brend:Topp Pro
- Dostupnost:Povremeno na Lageru
Opis & specifikacije

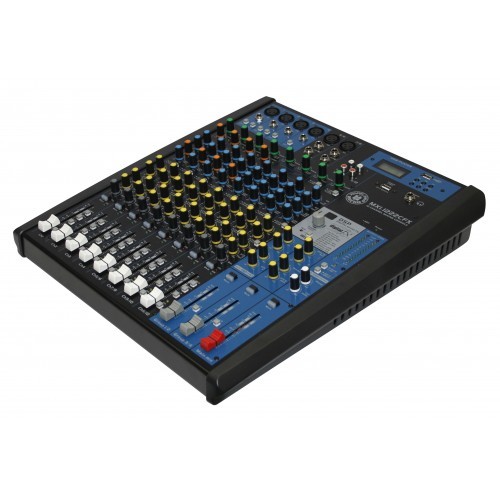

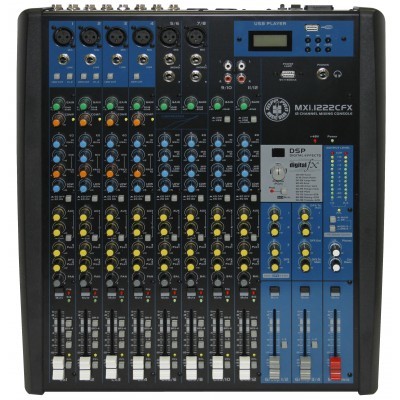

Topp Pro MXI 1222 CFX pasivna mikseta.
Izuzetan audio mikser sa 12 kanala i balansiranim ulazima mono i stereo, efektima, 4 podgrupe, 24bitnim procesorom, integrisanim USB media playerom, 4 kompresora na mikrofonskim ulazima.
Specifikacija :
12 channel audio mixer with EFX processor and compressors
- 4 mono inputs withXLR and Balanced TRS jack + 2 additional XLR mono inputs
- 4 Stereo inputs with Balanced TRS jack
- 4 compressors on MIC Inputs
- 3 band EQ with parametric mid-frequencies on all mono inputs andLo cut
- 3 Aux sends (Aux 1-2 Pre-Post switchable)
- Mute, Solo, 2-Track, Control Room, Phantom 48V functions
- 4 Subgroups
- 24 bits internal EFX processor
- Integrated USB media Player
- 11 Faders
Mono channels Microphone input XLR with balanced Frequency response 10Hz to 55KHz,+/-3dB Distortion (THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted Gain range 0dB to 50dB Max. Input +21 dB LOW CUT 75Hz SNR Phantom power +48V with switch control Line input 1/4” TRS with balanced Frequency response 10Hz to 55KHz,+/-3dB Distortion (THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted Sensitivity range +20dB~ -30dB Compressor GAIN: 0~9dB / THRESHOLD: 20dB—>5dB Stereo input channels Mic input XLR with balanced Line input 1/4′ TRS with balanced Frequency response 10Hz to 55KHz, +/-3dB Distortion (THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted Sensitivity range +20dBu~ -30dBu SNR RCA input channels RCA input RCA with un-balanced Frequency response 10Hz to 55KHz,+/-3dB Distortion (THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted Sensitivity range +20dBu~ -30dBu SNR Channels EQ Channel Mono / Stereo High +/-15dB @12KHz / +/-15dB @12KHz Mid +/-15dB @100KHz -8KHz / +/-15dB @3KHz or +/-15dB @500Hz Low +/-15dB @80Hz / +/-15dB @80Hz Impedances Microphone input 1.8K Ω All other input 10K Ω or greater Tape out 1K Ω All other out 120 Ω DSP section (options) A/D and D/A converters 24bit Type of effects Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flange+Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR Controls 100 position preset selector(10 preseter * 10 variation), Mute switch & Foot-switching with LED indicator FOOT-SW TIP: FX – SLEEVE: GND Main mix section Max. MAIN MIX output +26dBu XLR balanced (+20dBu un-balanced) AUX range OFF to +10dB Fader range OFF to +10dB PHONES/CONTROL-ROOM range OFF to +10dB Hum & Noise Crosstalk Power supply Main voltage 100-240V~ 50/60Hz Fuse T1.25A AC250V Rated power consumption 30W
Recenzije
Još nema komentara.
