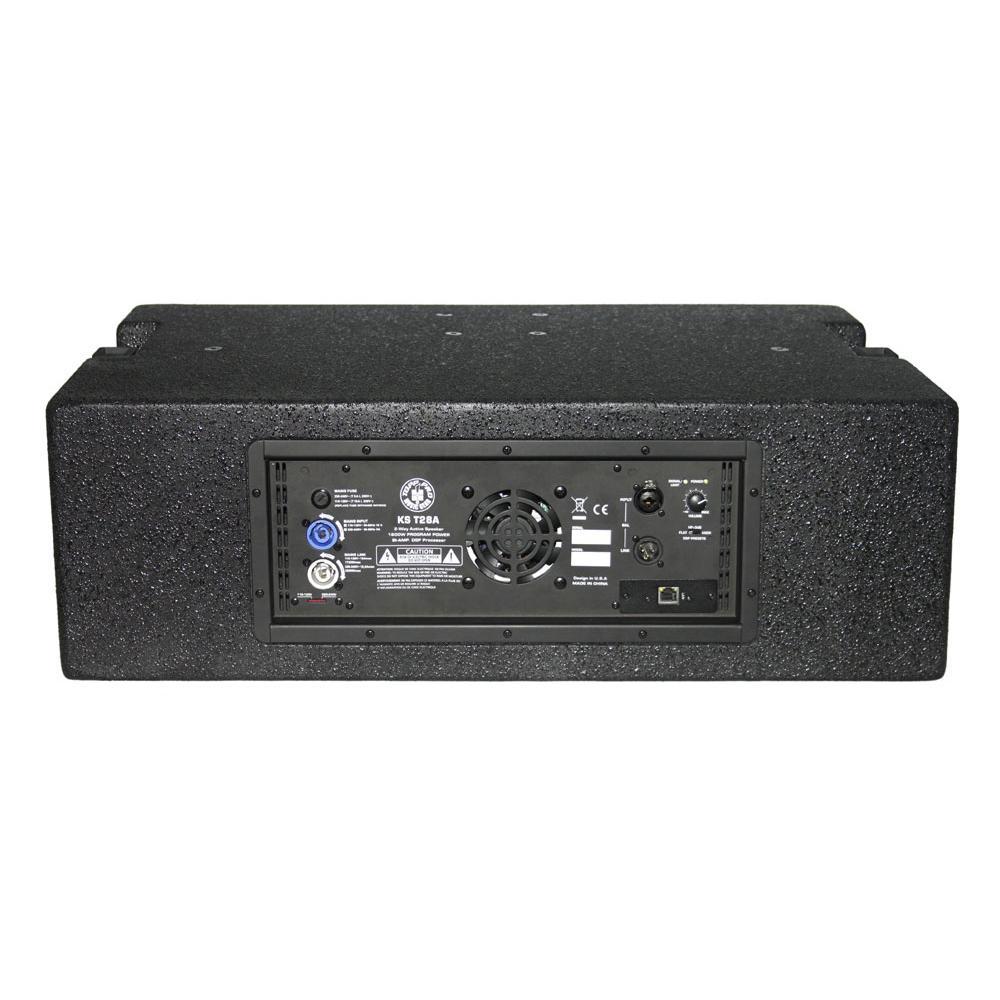

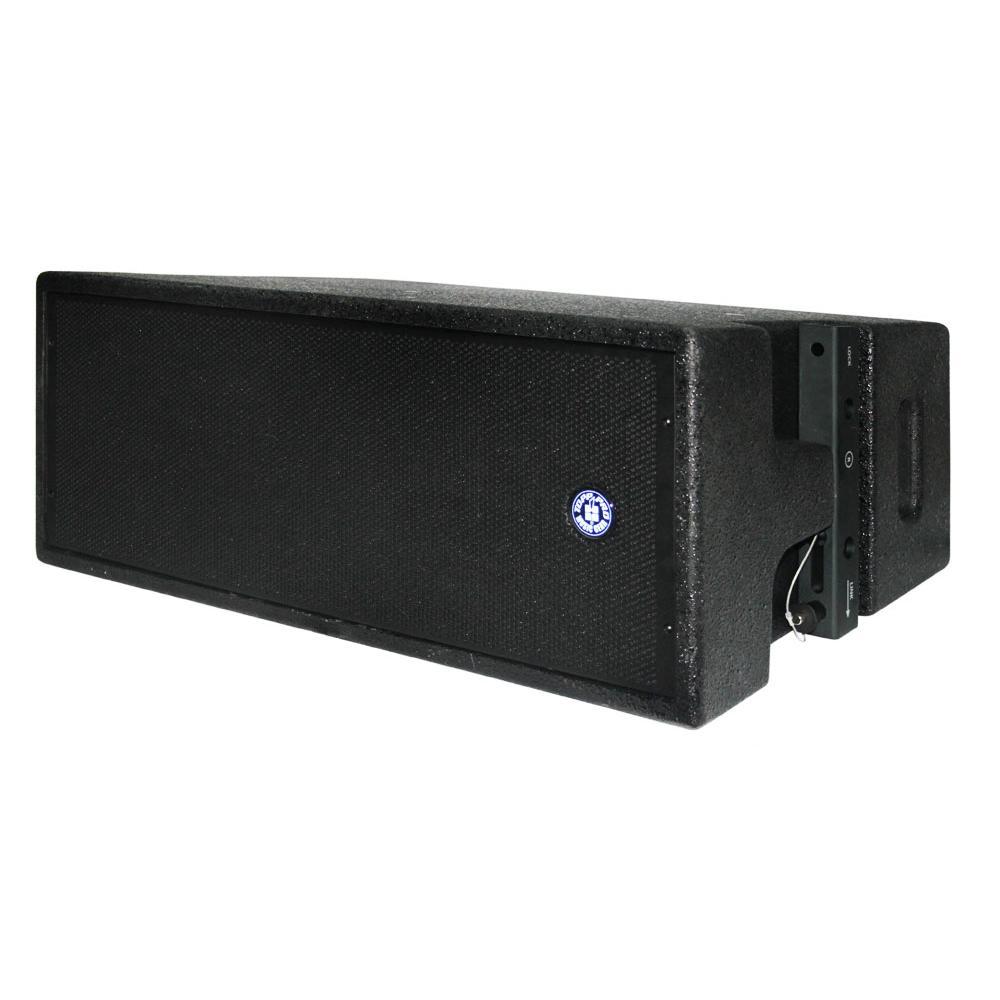

TP KST28A aktivni zvučnik

TP KST28A aktivni zvučnik iz Line Array sistema. Zvučnik je smešten u 18mm debelu kutiju od Plywood-a, sa integrisanim čeličnim delovima.

Karakteristike :

• 18 mm Plywood system, with integrated steel hardware
• On board 2 channel amplifier: D Class 650W RMS for low frequencies and AB Class 150 W RMS for high frequencies
• LF trasducer: 2 x 8″ long excursion with 2″ VC
• HF transducer: 2 x 1″ Neodymium – titanium diaphragmwith 1.4″ VCand proprietary wave guide
• Horizontal coverage 100° – Single element vertical coverage10°
• On board DSP processor with 3 presets EQ’s
• Optional DSP control module available
• Neutrik Powercon AC connector

Specifikacija :

System Type	2-Way Active Vented Speaker with DSP
Transducer Low	2 x 8″ Woofer, 2″ Voice Coil
Transducer High	2 × 1″ Titanium diaphragm, Neodymium magnet,1.4″ Voice Coil
Coverage Horizontal:	100° nominal, single unit
Coverage Vertical:	7.5° variable with array configuration
Frequency Response (-6dB)	65Hz-20KHz
Crossover Frequency	At 2.0KHz with 24dB filter slope, DSP process
Max SPL	129dB Max.
AMP Power Output	1600W Program, 3200W Peak
Input Connector	Line in -Combo / Link-XLR
Dsp Presets	Flat / HF +3dB / User (CustomSound)
Line Input	Combo Connector -6dBu
External Controls	Volume Control / Neutrik POWER CON® connector (Grey) offers linking the mains power supply power display with green LED / Clip Limiter with Red LED / IP Control Module (Optional)
Electronic Protections	Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
Power Supply	Neutrik POWER CON® connector,110-120V / 220-240V~50/60Hz Switchable
Suspension/Mounting:	Integrated hardware for suspension in Line Array, dual pole socket, two handle
Enclosure Construction	18mm calibrated plywood, black painted finish, 1.2T metal grille, power coating finish with internal foam
Dimensions (HxWxD)	271.5 × 692 × 423.5mm (10.7″ × 27.25″ × 16.7″)
Net Weight	29.1kg / 64.15Ibs
