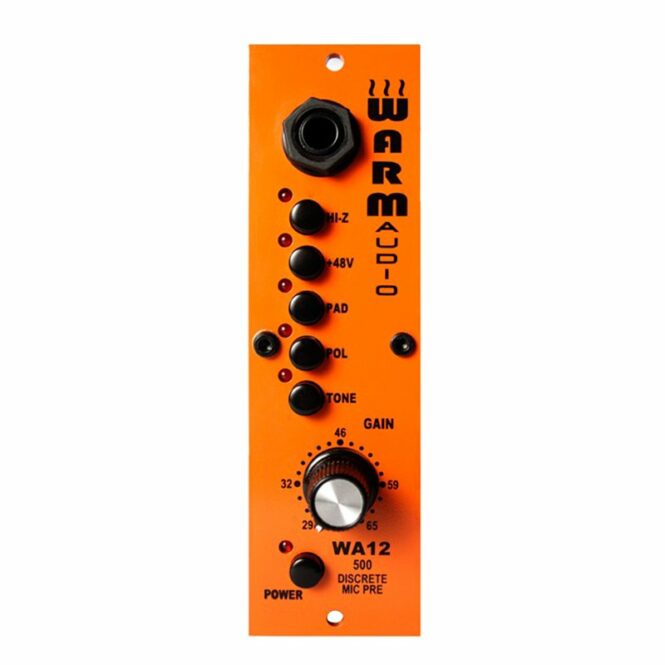

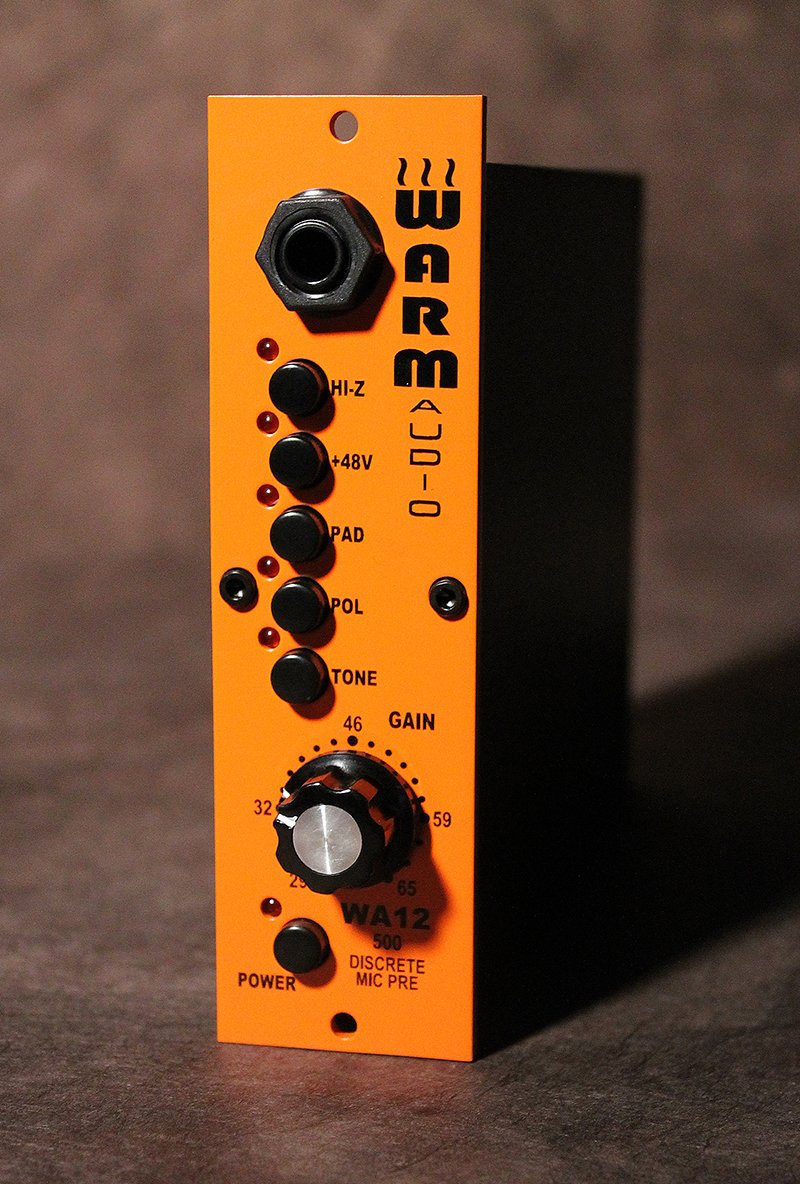

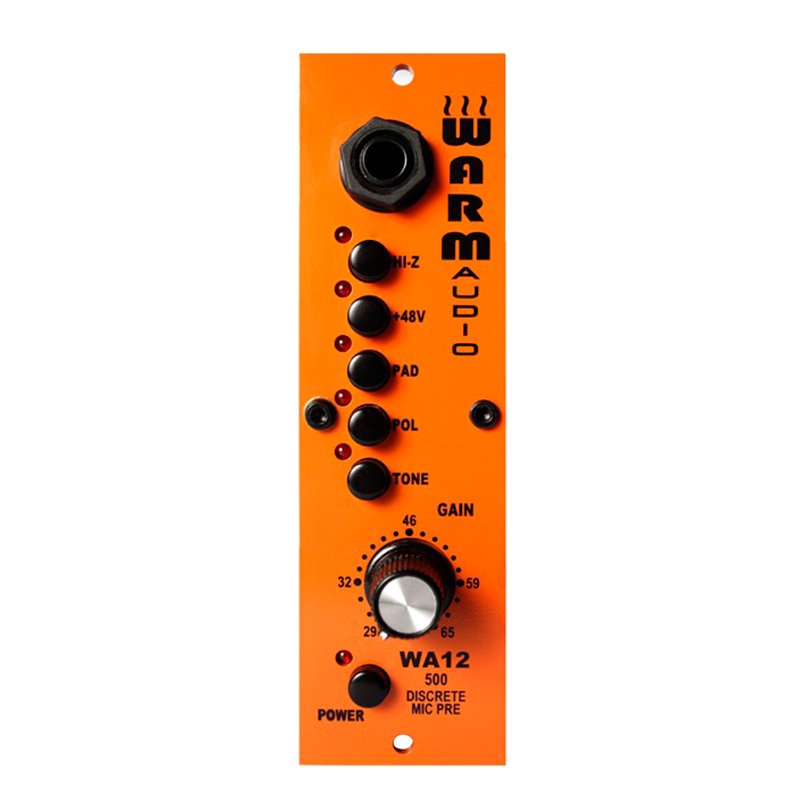

Warm Audio WA12-500

1-CHANNEL MICROPHONE AND INSTRUMENT PREAMPLIFIER IN 500 FORMAT

The hot Audio WA12-500 is a discrete, single-channel microphone and instrument preamplifier in 500 format. He is with Cinemag input and output transformersequipped (Made in USA), which provide in hi-end devices like the Presonus ADL-700, A-Designs Pacifica or Universal Audio LA-610 for the sound. The up to 71dB gain preamp delivered module is equipped with 48V phantom power, a phase switch and a 20dB pad. In addition, it features a TONE switch that lowers the input impedance of 600 Ohm to 150ohm and thus enables a significant change in the sounds. Furthermore a high-impedance instrument input is available, which is provided at the front as a jack input.



Features:

• 1-channel mic preamp
• API 500 Format
• 71dB gain
• Custom Designed Cinemag input and output transformer (Made in USA!)
• TONE switch – switches the input impedance of 600 Ohm to 150ohm (sound change both the microphone and the instrument input)
• Front panel Hi-Z input sends the signal through the entire circuit (both by the Cinemag transformers and by the discrete op-amp).

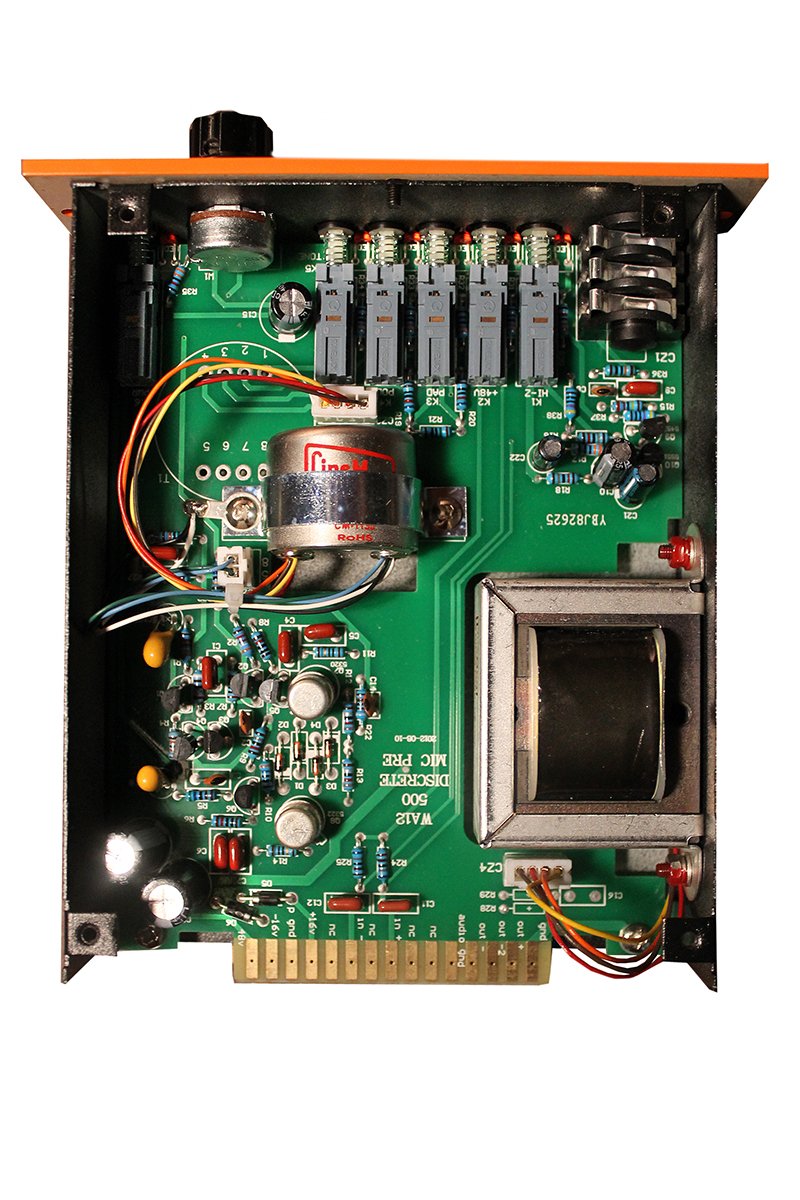

• 100% discrete circuit
• 1731 Style Op-Amp
• 48V phantom power
• -20dB pad
• Phase reverse switch
