Yamaha MG06X



Yamaha MG06X je mikseta sa 6 kanala. Analogna misketa sa fantomskim napajanjem. 2 mikrofonska ulaza sa fantomskim napajanjem.



Specifications:

Type: Analog
Channels: 6
Inputs – Mic: Preamps 2 x Combo (XLR/TRS)
Inputs – Line: 2 x TRS, 2 x TS
Outputs – Main: 2 x XLR, 2 x TRS
Headphones: 1 x 1/4″
Phantom Power: 2
EQ Bands: 2-Band EQ (High, Low)
Effects: Yes
Height: 2.4″
Width: 5.9″
Depth: 7.9″

Total harmonic distortion
0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response
+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)

Crosstalk
-83 dB
Power requirements
PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha

Power consumption
22.9 W

Dimensions
W 244 mm (9.6″)
H 71 mm (2.8″)
D 294 mm (11.6″)

Net weight
1.9 kg (4.19 lbs.)

Accessories
Included Accessory
AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A

Others Operating Temperature: 0 to +40˚C

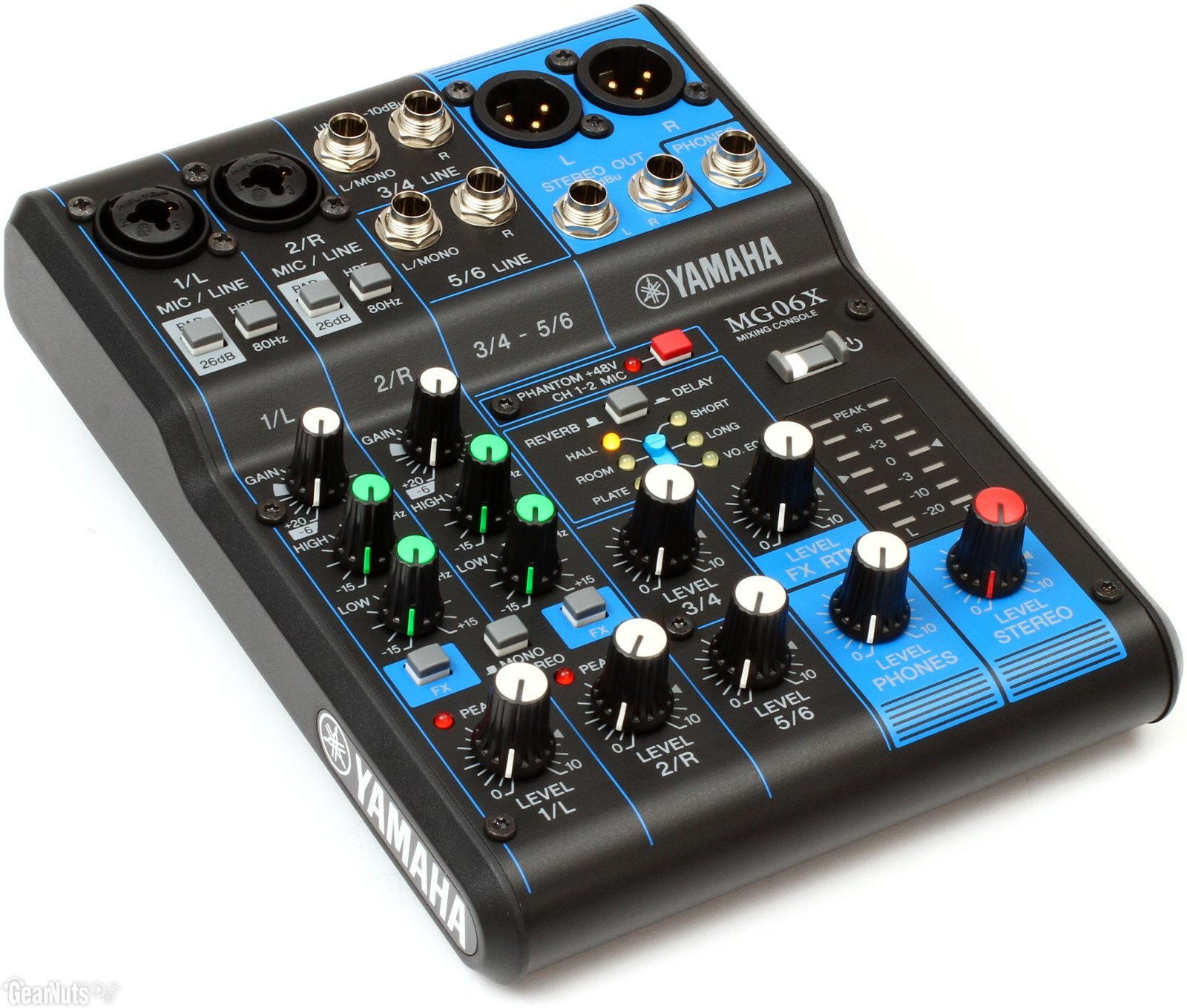

The Yamaha MG06X analog mixer is well-suited for ultra-compact mixing rigs, with its rich features and outstanding sound quality. The MG06X’s quality op-amp ensures that your mix sounds transparent and articulate. The MG06X’s crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring onboard digital effects, switchable phantom power, a pad switch, EQ, and LED metering, the MG06X can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha’s high-end consoles, the MG06X is ready to work for you!
