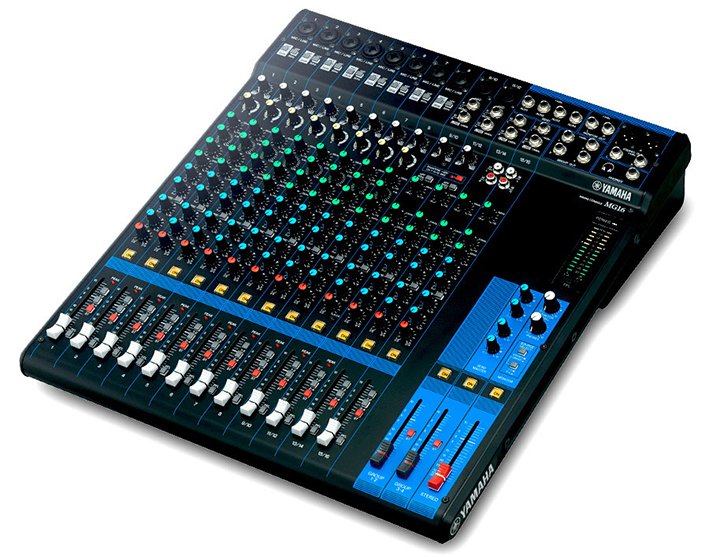

Yamaha MG16 pasivna mikseta

Yamaha MG16 je mikseta sa 16 kanala. Analogna misketa sa fantomskim napajanjem. Idealna mixeta za live nastupe, studio i višekanalno snimanje. 10 mikrofonskih ulaza sa fantomskim napajanjem. Mikseta sa 4 Aux send-a. Mikseta sa “D-PRE” mikrofonskim predpojačalom.



• 16-Channel Mixing Console
• Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 4 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Rack Mount Kit Included
• Metal chassis
• 444 mm x 130 mm x 500 mm (17.5″ x 5.1″ x 19.7″)
• 6.6 kg (14.6 lbs.)

Total harmonic distortion
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)

Residual output noise
-102 dBu (STEREO OUT, STEREO master fader: Min)

Crosstalk
-78 dB

Power requirements
AC 100 – 240 V, 50 / 60 Hz

Power consumption
30 W

Dimensions
W 444 mm (17.5″)
H 130 mm (5.1″)
D 500 mm (19.7″)

Net weight
6.6 kg (14.6 lbs.)

Accessories
Included Accessory
Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit

Others Operating Temperature: 0 to +40˚C



16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)
