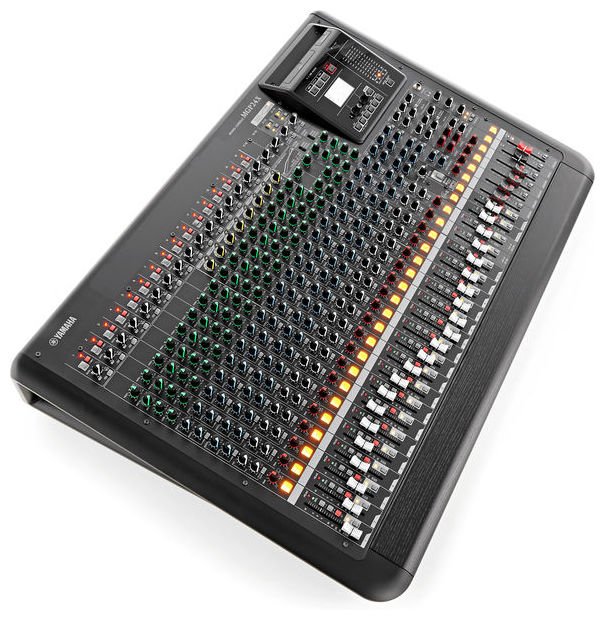

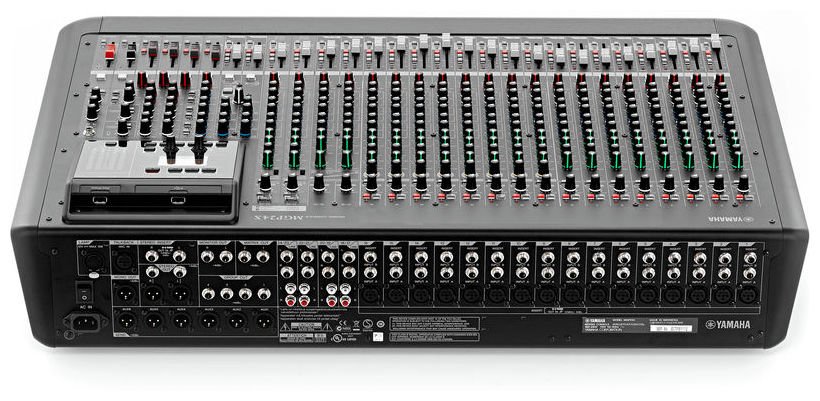

Yamaha MGP24X

Yamaha MGP24X je mikseta sa 24 kanala. Analogna misketa sa fantomskim napajanjem. Idealna mixeta za live nastupe, studio i višekanalno snimanje. 16 mikrofonskih ulaza sa fantomskim napajanjem. Mikseta sa 6 Aux send-a. Mikseta sa USB priključkom i IOS iPhone i iPAd.



Features:

16 Mic Inputs with 48V Phantom Power and HPF per Channel
24 Line Inputs (16 mono and 4 stereo)
6 AUX Sends + 2 FX Sends
4 GROUP Buses + ST Bus
2 Matrix out



Specifications:

Mixing capacity

Mixing channels: 24 Line Inputs (16 mono and 4 stereo)
GROUP: 4 GROUP Buses + ST Bus
AUX: 6 AUX Sends + 2 FX Sends
MATRIX: 1 Matrix out
On-board processors:L FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)

I/O

Mic inputs: MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
Phantom power: 48V phantom power per channel
Line inputs: LINE: 16 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo
Digital I/O: USB Device, iPod / iPhone

General

Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)
Frequency response: +0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz
Equivalent input noise: -128 dBu Equivalent Input Noise
Residual output noise: -94 dBu Residual Output Noise
Crosstalk: -74dB @ 1kHz
Power requirements: 100-240V 50Hz/60Hz
Power consumption: 86W max
Dimensions, W x H x D: 32.2″ x 6.7″ x 22.2″
Net weight: 34.2lb

The MGP24X is a 24-channel mixing console with iPhone/iPod connectivity, compression and digital effects. This mixer is appropriate to a wide range of professional applications from portable P.A. to fixed installation. The MGP24X features: 16 Mic Inputs with 48V Phantom Power and HPF per Channel, 24 Line Inputs (16 mono and 4 stereo), 6 AUX Sends + 2 FX Sends, 4 GROUP Buses + ST Bus, 2 Matrix out, and 1 Mono out. Great sounding microphone preamps, detailed EQ, quality digital effects and broad digital connectivity.
