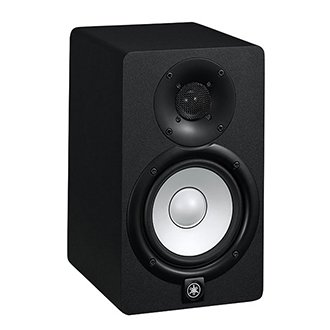

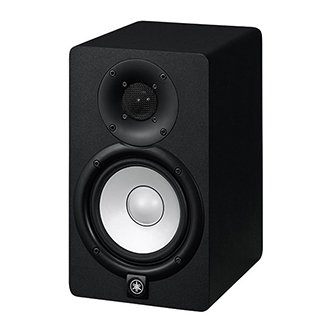

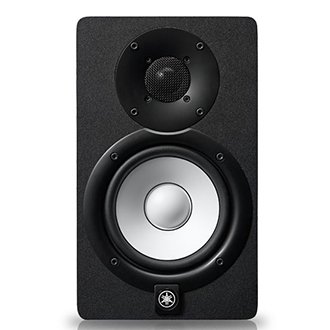

Yamaha HS5 Aktivni studijski monitor

Yamaha monitor HS5 – jedna od ikona Yamaha zvučnika.
Garancija 2 godine.
Bas refleks 5 inči.
Snaga 70W RMS.



Overview

• 2-way bass-reflex bi-amplified nearfield studio monitor with 5″ cone woofer and 1″ dome tweeter
• 54Hz – 30kHz (-10dB), 74Hz – 24kHz (-3dB) frequency response
• 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
• ROOM CONTROL and HIGH TRIM response controls

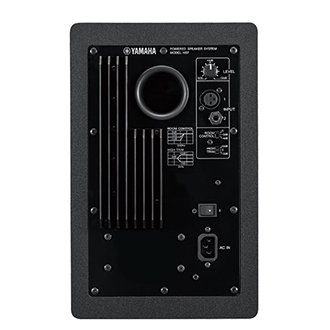

• XLR and TRS phone jack inputs accept balanced or unbalanced signals
• Packaging single



General specifications

Speaker type
2-way bi-amp powered studio monitor

Frequency response
(-10dB) 54Hz – 30kHz

Frequency response
(-3dB) 74Hz – 24kHz
Components
LF 5″ cone
HF 1″ dome

Crossover
2kHz

Output power
70W (LF:45W, HF:25W)

Input sensitivity
-10 dBu/10k ohms

I/O connectors
XLR3-31 type (balanced),
PHONE (balanced)

Indicators
Power ON (White LED)

Power consumption
45W

Shape
Bass-reflex type

Cabinet material
MDF

Dimensions
W 170mm (6-11/16″)
H 285mm (11-1/4″)
D 222mm (8-3/4″)

Net weight
5.3kg

Accessories
Owner’s Manual, Power cord

Packaging
Single
Others
LEVEL control (+4dB/center click),
EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
